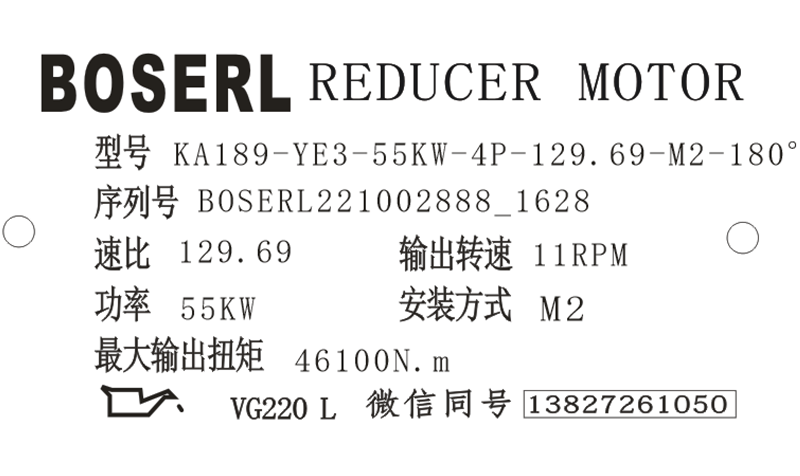

KA189減速機銘牌參數說明解讀含義：有關型號描述的詳細情況及其他信息可以參閱本業附件下載中的KA189減速機選型樣本。

KA189-YE3-55KW-4P-129.69-M2-180°

KA：系列代號

189：減速機規格代號

YE3：電機

55KW：電機功率

4P：電機級數

129.69：減速機傳動比

M2：減速機安裝位置

180°：接線盒位置

KA189減速機空心軸扭矩臂安裝：

裝配時不得對扭矩支架用力過猛，固定扭矩臂時應采用強度為8.8級的螺栓。下圖為KA189減速機的扭矩臂安裝示意圖：兩面均安裝支架，連接面B與連接A對稱安裝。齒輪減速電機

KA189減速機電機安裝和電機安裝位置的調整：

均勻調整螺母將電機安裝平臺固定到需要的位置。如要將KA189減速機的位置調整到最低，則在必要情況下可以拆除吊裝螺栓/吊耳；對于損傷的漆面部位進行修補。直角減速機

將電機與電機安裝平臺對準(軸端不許對齊)并固定。

將輸入端部件安裝于輸入端的軸端面和電機軸，將輸入部件、軸端與電機軸的位置相互校正；如果必要可以對電機位置進行再次校正。

裝上傳動部件（V型皮帶、鏈條...）并均勻調節電機安裝平臺使其預張緊。期間不得用力過猛，否則將會擰壞電機安裝平臺和螺桿。

擰緊非調整螺母以固定螺桿。空心軸減速機

KA189減速機型號：

WKA187-Y110SKA，WKA187-Y132SKA，WKA187-Y160SKA，WKA187-Y18.5SKA，WKA187-Y180M4，WKA187-Y200SKA，WKA187-Y200M4，WKA187-Y225M4，WKA187-Y22SKA，WKA187-Y250M4，WKA187-Y280M4，WKA187-Y30SKA，WKA187-Y315M4，WKA187-Y37SKA，WKA187-Y45SKA，WKA187-Y55SKA，WKA187-Y75SKA，WKA187-Y90SKA，WKA187-YB180M4，WKA187-YB200M4，WKA187-YB225M4，WKA187-YB250M4，WKA187-YB280M4，WKA187-YB315M4，WKA187-YDP180M4，WKA187-YDP200M4，WKA187-YDP225M4，WKA187-YDP250M4，WKA187-YDP280M4，WKA187-YDP315M4，WKA187-YE180M4，WKA187-YE200M4，WKA187-YE225M4，WKA187-YE250M4，WKA187-YE280M4，WKA187-YE315M4，WKA187-YEJ180M4，WKA187-YEJ200M4，WKA187-YEJ225M4，WKA187-YEJ250M4，WKA187-YEJ280M4，WKA187-YEJ315M4，WKA187-YEJB180M4，WKA187-YEJB200M4，WKA187-YEJB225M4，WKA187-YEJB250M4，WKA187-YEJB280M4，WKA187-YEJB315M4，WKA187-YP180M4，WKA187-YP200M4，WKA187-YP225M4，WKA187-YP250M4，WKA187-YP280M4，WKA187-YP315M4，WKA187-YPB180M4，WKA187-YPB200M4，WKA187-YPB225M4，WKA187-YPB250M4，WKA187-YPB280M4，WKA187-YPB315M4，WKA187-YPE180M4，WKA187-YPE200M4，WKA187-YPE225M4，WKA187-YPE250M4，WKA187-YPE280M4，WKA187-YPE315M4，WKA187-YS180M4，WKA187-YS200M4，WKA187-YS225M4，WKA187-YS250M4，WKA187-YS280M4，WKA187-YS315M4，WKA187-YVB180M4，WKA187-YVB200M4，WKA187-YVB225M4，WKA187-YVB250M4，WKA187-YVB280M4，WKA187-YVB315M4，WKA187-YVP180M4，WKA187-YVP200M4，WKA187-YVP225M4，WKA187-YVP250M4，WKA187-YVP280M4，WKA187-YVP315M4，WKA187-YVPEJ180M4，WKA187-YVPEJ200M4，WKA187-YVPEJ225M4，WKA187-YVPEJ250M4，WKA187-YVPEJ280M4，WKA187-YVPEJ315M4，AKA187-Y110SKA，AKA187-Y132SKA，AKA187-Y160SKA，AKA187-Y18.5SKA，AKA187-Y180M4，AKA187-Y200SKA，AKA187-Y200M4，AKA187-Y225M4，AKA187-Y22SKA，AKA187-Y250M4，AKA187-Y280M4，AKA187-Y30SKA，AKA187-Y315M4，AKA187-Y37SKA，AKA187-Y45SKA，AKA187-Y55SKA，AKA187-Y75SKA，AKA187-Y90SKA，AKA187-YB180M4，AKA187-YB200M4，AKA187-YB225M4，AKA187-YB250M4，AKA187-YB280M4，AKA187-YB315M4，AKA187-YDP180M4，AKA187-YDP200M4，AKA187-YDP225M4，AKA187-YDP250M4，AKA187-YDP280M4，AKA187-YDP315M4，AKA187-YE180M4，AKA187-YE200M4，AKA187-YE225M4，AKA187-YE250M4，AKA187-YE280M4，AKA187-YE315M4，AKA187-YEJ180M4，AKA187-YEJ200M4，AKA187-YEJ225M4，AKA187-YEJ250M4，AKA187-YEJ280M4，AKA187-YEJ315M4，AKA187-YEJB180M4，AKA187-YEJB200M4，AKA187-YEJB225M4，AKA187-YEJB250M4，AKA187-YEJB280M4，AKA187-YEJB315M4，AKA187-YP180M4，AKA187-YP200M4，AKA187-YP225M4，AKA187-YP250M4，AKA187-YP280M4，AKA187-YP315M4，AKA187-YPB180M4，AKA187-YPB200M4，AKA187-YPB225M4，AKA187-YPB250M4，AKA187-YPB280M4，AKA187-YPB315M4，AKA187-YPE180M4，AKA187-YPE200M4，AKA187-YPE225M4，AKA187-YPE250M4，AKA187-YPE280M4，AKA187-YPE315M4，AKA187-YS180M4，AKA187-YS200M4，AKA187-YS225M4，AKA187-YS250M4，AKA187-YS280M4，AKA187-YS315M4，AKA187-YVB180M4，AKA187-YVB200M4，AKA187-YVB225M4，AKA187-YVB250M4，AKA187-YVB280M4，AKA187-YVB315M4，AKA187-YVP180M4，AKA187-YVP200M4，AKA187-YVP225M4，AKA187-YVP250M4，AKA187-YVP280M4，AKA187-YVP315M4，AKA187-YVPEJ180M4，AKA187-YVPEJ200M4，AKA187-YVPEJ225M4，AKA187-YVPEJ250M4，AKA187-YVPEJ280M4，AKA187-YVPEJ315M4，NKA187-Y110SKA，NKA187-Y132SKA，NKA187-Y160SKA，NKA187-Y18.5SKA，NKA187-Y180M4，NKA187-Y200SKA，NKA187-Y200M4，NKA187-Y225M4，NKA187-Y22SKA，NKA187-Y250M4，NKA187-Y280M4，NKA187-Y30SKA，NKA187-Y315M4，NKA187-Y37SKA，NKA187-Y45SKA，NKA187-Y55SKA，NKA187-Y75SKA，NKA187-Y90SKA，NKA187-YB180M4，NKA187-YB200M4，NKA187-YB225M4，NKA187-YB250M4，NKA187-YB280M4，NKA187-YB315M4，NKA187-YDP180M4，NKA187-YDP200M4，NKA187-YDP225M4，NKA187-YDP250M4，NKA187-YDP280M4，NKA187-YDP315M4，NKA187-YE180M4，NKA187-YE200M4，NKA187-YE225M4，NKA187-YE250M4，NKA187-YE280M4，NKA187-YE315M4，NKA187-YEJ180M4，NKA187-YEJ200M4，NKA187-YEJ225M4，NKA187-YEJ250M4，NKA187-YEJ280M4，NKA187-YEJ315M4，NKA187-YEJB180M4，NKA187-YEJB200M4，NKA187-YEJB225M4，NKA187-YEJB250M4，NKA187-YEJB280M4，NKA187-YEJB315M4，NKA187-YP180M4，NKA187-YP200M4，NKA187-YP225M4，NKA187-YP250M4，NKA187-YP280M4，NKA187-YP315M4，NKA187-YPB180M4，NKA187-YPB200M4，NKA187-YPB225M4，NKA187-YPB250M4，NKA187-YPB280M4，NKA187-YPB315M4，NKA187-YPE180M4，NKA187-YPE200M4，NKA187-YPE225M4，NKA187-YPE250M4，NKA187-YPE280M4，NKA187-YPE315M4，NKA187-YS180M4，NKA187-YS200M4，NKA187-YS225M4，NKA187-YS250M4，NKA187-YS280M4，NKA187-YS315M4，NKA187-YVB180M4，NKA187-YVB200M4，NKA187-YVB225M4，NKA187-YVB250M4，NKA187-YVB280M4，NKA187-YVB315M4，NKA187-YVP180M4，NKA187-YVP200M4，NKA187-YVP225M4，NKA187-YVP250M4，NKA187-YVP280M4，NKA187-YVP315M4，NKA187-YVPEJ180M4，NKA187-YVPEJ200M4，NKA187-YVPEJ225M4，NKA187-YVPEJ250M4，NKA187-YVPEJ280M4，NKA187-YVPEJ315M4，SKA187-Y110SKA，SKA187-Y132SKA，SKA187-Y160SKA，SKA187-Y18.5SKA，SKA187-Y180M4，SKA187-Y200SKA，SKA187-Y200M4，SKA187-Y225M4，SKA187-Y22SKA，SKA187-Y250M4，SKA187-Y280M4，SKA187-Y30SKA，SKA187-Y315M4，SKA187-Y37SKA，SKA187-Y45SKA，SKA187-Y55SKA，SKA187-Y75SKA，SKA187-Y90SKA，SKA187-YB180M4，SKA187-YB200M4，SKA187-YB225M4，SKA187-YB250M4，SKA187-YB280M4，SKA187-YB315M4，SKA187-YDP180M4，SKA187-YDP200M4，SKA187-YDP225M4，SKA187-YDP250M4，SKA187-YDP280M4，SKA187-YDP315M4，SKA187-YE180M4，SKA187-YE200M4，SKA187-YE225M4，SKA187-YE250M4，SKA187-YE280M4，SKA187-YE315M4，SKA187-YEJ180M4，SKA187-YEJ200M4，SKA187-YEJ225M4，SKA187-YEJ250M4，SKA187-YEJ280M4，SKA187-YEJ315M4，SKA187-YEJB180M4，SKA187-YEJB200M4，SKA187-YEJB225M4，SKA187-YEJB250M4，SKA187-YEJB280M4，SKA187-YEJB315M4，SKA187-YP180M4，SKA187-YP200M4，SKA187-YP225M4，SKA187-YP250M4，SKA187-YP280M4，SKA187-YP315M4，SKA187-YPB180M4，SKA187-YPB200M4，SKA187-YPB225M4，SKA187-YPB250M4，SKA187-YPB280M4，SKA187-YPB315M4，SKA187-YPE180M4，SKA187-YPE200M4，SKA187-YPE225M4，SKA187-YPE250M4，SKA187-YPE280M4，SKA187-YPE315M4，SKA187-YS180M4，SKA187-YS200M4，SKA187-YS225M4，SKA187-YS250M4，SKA187-YS280M4，SKA187-YS315M4，SKA187-YVB180M4，SKA187-YVB200M4，SKA187-YVB225M4，SKA187-YVB250M4，SKA187-YVB280M4，SKA187-YVB315M4，SKA187-YVP180M4，SKA187-YVP200M4，SKA187-YVP225M4，SKA187-YVP250M4，SKA187-YVP280M4，SKA187-YVP315M4，SKA187-YVPEJ180M4，SKA187-YVPEJ200M4，SKA187-YVPEJ225M4，SKA187-YVPEJ250M4，SKA187-YVPEJ280M4，SKA187-YVPEJ315M4，GKA189-Y110SKA，GKA189-Y132SKA，GKA189-Y160SKA，GKA189-Y18.5SKA，GKA189-Y180M4，GKA189-Y200SKA，GKA189-Y200M4，GKA189-Y225M4，GKA189-Y22SKA，GKA189-Y250M4，GKA189-Y280M4，GKA189-Y30SKA，GKA189-Y315M4，GKA189-Y37SKA，GKA189-Y45SKA，GKA189-Y55SKA，GKA189-Y75SKA，GKA189-Y90SKA，GKA189-YB180M4，GKA189-YB200M4，GKA189-YB225M4，GKA189-YB250M4，GKA189-YB280M4，GKA189-YB315M4，GKA189-YDP180M4，GKA189-YDP200M4，GKA189-YDP225M4，GKA189-YDP250M4，GKA189-YDP280M4，GKA189-YDP315M4，GKA189-YE180M4，GKA189-YE200M4，GKA189-YE225M4，GKA189-YE250M4，GKA189-YE280M4，GKA189-YE315M4，GKA189-YEJ180M4，GKA189-YEJ200M4，GKA189-YEJ225M4，GKA189-YEJ250M4，GKA189-YEJ280M4，GKA189-YEJ315M4，GKA189-YEJB180M4，GKA189-YEJB200M4，GKA189-YEJB225M4，GKA189-YEJB250M4，GKA189-YEJB280M4，GKA189-YEJB315M4，GKA189-YP180M4，GKA189-YP200M4，GKA189-YP225M4，GKA189-YP250M4，GKA189-YP280M4，GKA189-YP315M4，GKA189-YPB180M4，GKA189-YPB200M4，GKA189-YPB225M4，GKA189-YPB250M4，GKA189-YPB280M4，GKA189-YPB315M4，GKA189-YPE180M4，GKA189-YPE200M4，GKA189-YPE225M4，GKA189-YPE250M4，GKA189-YPE280M4，GKA189-YPE315M4，GKA189-YS180M4，GKA189-YS200M4，GKA189-YS225M4，GKA189-YS250M4，GKA189-YS280M4，GKA189-YS315M4，GKA189-YVB180M4，GKA189-YVB200M4，GKA189-YVB225M4，GKA189-YVB250M4，GKA189-YVB280M4，GKA189-YVB315M4，GKA189-YVP180M4，GKA189-YVP200M4，GKA189-YVP225M4，GKA189-YVP250M4，GKA189-YVP280M4，GKA189-YVP315M4，GKA189-YVPEJ180M4，GKA189-YVPEJ200M4，GKA189-YVPEJ225M4，GKA189-YVPEJ250M4，GKA189-YVPEJ280M4，GKA189-YVPEJ315M4。
