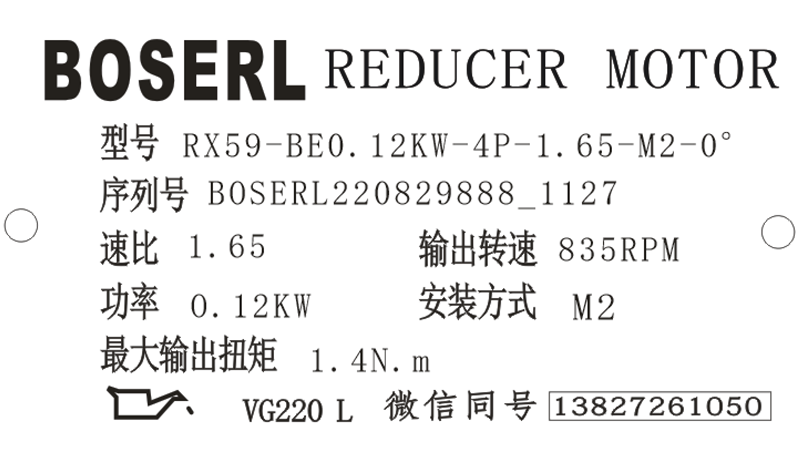

RX59減速機銘牌參數說明解讀含義：有關型號描述的詳細情況及其他信息可以參閱本業附件下載中的RX59減速機選型樣本。

RX59-BE0.12KW-4P-1.65-M2-0°

RX：系列代號

59：減速機規格代號

BE：電機

0.12KW：電機功率

4P：電機級數

1.65：減速機傳動比

M2：減速機安裝位置

0°：接線盒位置

RX59減速機聯軸器的安裝：

RX59減速機輸入和輸出部件，如皮帶輪、聯軸器等在運行過程中會發生飛速運轉，可能有夾傷和擠壓危險，輸入和輸出部件采用防護罩蓋板！齒輪減速電機

RX59減速機聯軸器裝配時要根據聯軸器制造商的規定進行下列校正：最大以及a最小間距；b軸向偏差；c角偏差；若事先對輸出部件涂抹潤滑油或進行短時間加熱（到80至100°C）,則可便于裝配。

采用裝配夾具進行安裝RX59減速機聯軸器：下圖為采用裝配夾具將聯軸器或輪轂安裝RX59減速機或電機的軸端上的操作示意。若能夠順利擰緊螺栓，則可以在必要情況下無須安裝裝配夾具上的推力軸承。

RX59減速機電機安裝和電機安裝位置的調整：

均勻調整螺母將電機安裝平臺固定到需要的位置。如要將RX59減速機的位置調整到最低，則在必要情況下可以拆除吊裝螺栓/吊耳；對于損傷的漆面部位進行修補。電機減速機一體機

將電機與電機安裝平臺對準(軸端不許對齊)并固定。

將輸入端部件安裝于輸入端的軸端面和電機軸，將輸入部件、軸端與電機軸的位置相互校正；如果必要可以對電機位置進行再次校正。

裝上傳動部件（V型皮帶、鏈條...）并均勻調節電機安裝平臺使其預張緊。期間不得用力過猛，否則將會擰壞電機安裝平臺和螺桿。

擰緊非調整螺母以固定螺桿。臥式減速機

RX59減速機型號：

XDRX57-AM100M4，XDRX57-AM112M4，XDRX57-AM132M4，XDRX57-AM63M4，XDRX57-AM71M4，XDRX57-AM80M4，XDRX57-AM90M4，XDRX57-Y0.12KW，XDRX57-Y0.18KW，XDRX57-Y0.25KW，XDRX57-Y0.37KW，XDRX57-Y0.55KW，XDRX57-Y0.75KW，XDRX57-Y1.1KW，XDRX57-Y1.5KW，XDRX57-Y100M4，XDRX57-Y112M4，XDRX57-Y132M4，XDRX57-Y2.2KW，XDRX57-Y3KW，XDRX57-Y4KW，XDRX57-Y5.5KW，XDRX57-Y63M4，XDRX57-Y7.5KW，XDRX57-Y71M4，XDRX57-Y80M4，XDRX57-Y90M4，XDRX57-YB100M4，XDRX57-YB112M4，XDRX57-YB132M4，XDRX57-YB63M4，XDRX57-YB71M4，XDRX57-YB80M4，XDRX57-YB90M4，XDRX57-YDP100M4，XDRX57-YDP112M4，XDRX57-YDP132M4，XDRX57-YDP63M4，XDRX57-YDP71M4，XDRX57-YDP80M4，XDRX57-YDP90M4，XDRX57-YE100M4，XDRX57-YE112M4，XDRX57-YE132M4，XDRX57-YE63M4，XDRX57-YE71M4，XDRX57-YE80M4，XDRX57-YE90M4，XDRX57-YEJ100M4，XDRX57-YEJ112M4，XDRX57-YEJ132M4，XDRX57-YEJ63M4，XDRX57-YEJ71M4，XDRX57-YEJ80M4，XDRX57-YEJ90M4，XDRX57-YEJB100M4，XDRX57-YEJB112M4，XDRX57-YEJB132M4，XDRX57-YEJB63M4，XDRX57-YEJB71M4，XDRX57-YEJB80M4，XDRX57-YEJB90M4，XDRX57-YP100M4，XDRX57-YP112M4，XDRX57-YP132M4，XDRX57-YP63M4，XDRX57-YP71M4，XDRX57-YP80M4，XDRX57-YP90M4，XDRX57-YPB100M4，XDRX57-YPB112M4，XDRX57-YPB132M4，XDRX57-YPB63M4，XDRX57-YPB71M4，XDRX57-YPB80M4，XDRX57-YPB90M4，XDRX57-YPE100M4，XDRX57-YPE112M4，XDRX57-YPE132M4，XDRX57-YPE63M4，XDRX57-YPE71M4，XDRX57-YPE80M4，XDRX57-YPE90M4，XDRX57-YS100M4，XDRX57-YS112M4，XDRX57-YS132M4，XDRX57-YS63M4，XDRX57-YS71M4，XDRX57-YS80M4，XDRX57-YS90M4，XDRX57-YVB100M4，XDRX57-YVB112M4，XDRX57-YVB132M4，XDRX57-YVB63M4，XDRX57-YVB71M4，XDRX57-YVB80M4，XDRX57-YVB90M4，XDRX57-YVP100M4，XDRX57-YVP112M4，XDRX57-YVP132M4，XDRX57-YVP63M4，XDRX57-YVP71M4，XDRX57-YVP80M4，XDRX57-YVP90M4，XDRX57-YVPEJ100M4，XDRX57-YVPEJ112M4，XDRX57-YVPEJ132M4，XDRX57-YVPEJ63M4，XDRX57-YVPEJ71M4，XDRX57-YVPEJ80M4，XDRX57-YVPEJ90M4，RX59-AM100M4，RX59-AM112M4，RX59-AM132M4，RX59-AM63M4，RX59-AM71M4，RX59-AM80M4，RX59-AM90M4，RX59-Y0.12KW，RX59-Y0.18KW，RX59-Y0.25KW，RX59-Y0.37KW，RX59-Y0.55KW，RX59-Y0.75KW，RX59-Y1.1KW，RX59-Y1.5KW，RX59-Y100M4，RX59-Y112M4，RX59-Y132M4，RX59-Y2.2KW，RX59-Y3KW，RX59-Y4KW，RX59-Y5.5KW，RX59-Y63M4，RX59-Y7.5KW，RX59-Y71M4，RX59-Y80M4，RX59-Y90M4，RX59-YB100M4，RX59-YB112M4，RX59-YB132M4，RX59-YB63M4，RX59-YB71M4，RX59-YB80M4，RX59-YB90M4，RX59-YDP100M4，RX59-YDP112M4，RX59-YDP132M4，RX59-YDP63M4，RX59-YDP71M4，RX59-YDP80M4，RX59-YDP90M4，RX59-YE100M4，RX59-YE112M4，RX59-YE132M4，RX59-YE63M4，RX59-YE71M4，RX59-YE80M4，RX59-YE90M4，RX59-YEJ100M4，RX59-YEJ112M4，RX59-YEJ132M4，RX59-YEJ63M4，RX59-YEJ71M4，RX59-YEJ80M4，RX59-YEJ90M4，RX59-YEJB100M4，RX59-YEJB112M4，RX59-YEJB132M4，RX59-YEJB63M4，RX59-YEJB71M4，RX59-YEJB80M4，RX59-YEJB90M4，RX59-YP100M4，RX59-YP112M4，RX59-YP132M4，RX59-YP63M4，RX59-YP71M4，RX59-YP80M4，RX59-YP90M4，RX59-YPB100M4，RX59-YPB112M4，RX59-YPB132M4，RX59-YPB63M4，RX59-YPB71M4，RX59-YPB80M4，RX59-YPB90M4，RX59-YPE100M4，RX59-YPE112M4，RX59-YPE132M4，RX59-YPE63M4，RX59-YPE71M4，RX59-YPE80M4，RX59-YPE90M4，RX59-YS100M4，RX59-YS112M4，RX59-YS132M4，RX59-YS63M4，RX59-YS71M4，RX59-YS80M4，RX59-YS90M4，RX59-YVB100M4，RX59-YVB112M4，RX59-YVB132M4，RX59-YVB63M4，RX59-YVB71M4，RX59-YVB80M4，RX59-YVB90M4，RX59-YVP100M4，RX59-YVP112M4，RX59-YVP132M4，RX59-YVP63M4，RX59-YVP71M4，RX59-YVP80M4，RX59-YVP90M4，RX59-YVPEJ100M4，RX59-YVPEJ112M4，RX59-YVPEJ132M4，RX59-YVPEJ63M4，RX59-YVPEJ71M4，RX59-YVPEJ80M4，RX59-YVPEJ90M4，RWX57-AM100M4，RWX57-AM112M4，RWX57-AM132M4，RWX57-AM63M4，RWX57-AM71M4，RWX57-AM80M4，RWX57-AM90M4，RWX57-Y0.12KW，RWX57-Y0.18KW，RWX57-Y0.25KW，RWX57-Y0.37KW，RWX57-Y0.55KW，RWX57-Y0.75KW，RWX57-Y1.1KW，RWX57-Y1.5KW，RWX57-Y100M4，RWX57-Y112M4，RWX57-Y132M4，RWX57-Y2.2KW，RWX57-Y3KW，RWX57-Y4KW，RWX57-Y5.5KW，RWX57-Y63M4，RWX57-Y7.5KW，RWX57-Y71M4，RWX57-Y80M4，RWX57-Y90M4，RWX57-YB100M4，RWX57-YB112M4，RWX57-YB132M4，RWX57-YB63M4，RWX57-YB71M4，RWX57-YB80M4，RWX57-YB90M4，RWX57-YDP100M4，RWX57-YDP112M4，RWX57-YDP132M4，RWX57-YDP63M4，RWX57-YDP71M4，RWX57-YDP80M4，RWX57-YDP90M4，RWX57-YE100M4，RWX57-YE112M4，RWX57-YE132M4，RWX57-YE63M4，RWX57-YE71M4，RWX57-YE80M4，RWX57-YE90M4，RWX57-YEJ100M4，RWX57-YEJ112M4，RWX57-YEJ132M4，RWX57-YEJ63M4，RWX57-YEJ71M4，RWX57-YEJ80M4，RWX57-YEJ90M4，RWX57-YEJB100M4，RWX57-YEJB112M4，RWX57-YEJB132M4，RWX57-YEJB63M4，RWX57-YEJB71M4，RWX57-YEJB80M4，RWX57-YEJB90M4，RWX57-YP100M4，RWX57-YP112M4，RWX57-YP132M4，RWX57-YP63M4，RWX57-YP71M4，RWX57-YP80M4，RWX57-YP90M4，RWX57-YPB100M4，RWX57-YPB112M4，RWX57-YPB132M4，RWX57-YPB63M4，RWX57-YPB71M4，RWX57-YPB80M4，RWX57-YPB90M4，RWX57-YPE100M4，RWX57-YPE112M4，RWX57-YPE132M4，RWX57-YPE63M4，RWX57-YPE71M4，RWX57-YPE80M4，RWX57-YPE90M4，RWX57-YS100M4，RWX57-YS112M4，RWX57-YS132M4，RWX57-YS63M4，RWX57-YS71M4，RWX57-YS80M4，RWX57-YS90M4，RWX57-YVB100M4，RWX57-YVB112M4，RWX57-YVB132M4，RWX57-YVB63M4，RWX57-YVB71M4，RWX57-YVB80M4，RWX57-YVB90M4，RWX57-YVP100M4，RWX57-YVP112M4，RWX57-YVP132M4，RWX57-YVP63M4，RWX57-YVP71M4，RWX57-YVP80M4，RWX57-YVP90M4，RWX57-YVPEJ100M4，RWX57-YVPEJ112M4，RWX57-YVPEJ132M4，RWX57-YVPEJ63M4，RWX57-YVPEJ71M4，RWX57-YVPEJ80M4，RWX57-YVPEJ90M4，YQRX57-AM100M4，YQRX57-AM112M4，YQRX57-AM132M4，YQRX57-AM63M4，YQRX57-AM71M4，YQRX57-AM80M4，YQRX57-AM90M4，YQRX57-Y0.12KW，YQRX57-Y0.18KW，YQRX57-Y0.25KW，YQRX57-Y0.37KW，YQRX57-Y0.55KW，YQRX57-Y0.75KW，YQRX57-Y1.1KW，YQRX57-Y1.5KW，YQRX57-Y100M4，YQRX57-Y112M4，YQRX57-Y132M4，YQRX57-Y2.2KW，YQRX57-Y3KW，YQRX57-Y4KW，YQRX57-Y5.5KW，YQRX57-Y63M4，YQRX57-Y7.5KW，YQRX57-Y71M4，YQRX57-Y80M4，YQRX57-Y90M4，YQRX57-YB100M4，YQRX57-YB112M4，YQRX57-YB132M4，YQRX57-YB63M4，YQRX57-YB71M4，YQRX57-YB80M4，YQRX57-YB90M4，YQRX57-YDP100M4，YQRX57-YDP112M4，YQRX57-YDP132M4，YQRX57-YDP63M4，YQRX57-YDP71M4，YQRX57-YDP80M4，YQRX57-YDP90M4，YQRX57-YE100M4，YQRX57-YE112M4，YQRX57-YE132M4，YQRX57-YE63M4，YQRX57-YE71M4，YQRX57-YE80M4，YQRX57-YE90M4，YQRX57-YEJ100M4，YQRX57-YEJ112M4，YQRX57-YEJ132M4，YQRX57-YEJ63M4，YQRX57-YEJ71M4，YQRX57-YEJ80M4，YQRX57-YEJ90M4，YQRX57-YEJB100M4，YQRX57-YEJB112M4，YQRX57-YEJB132M4，YQRX57-YEJB63M4，YQRX57-YEJB71M4，YQRX57-YEJB80M4，YQRX57-YEJB90M4，YQRX57-YP100M4，YQRX57-YP112M4，YQRX57-YP132M4，YQRX57-YP63M4，YQRX57-YP71M4，YQRX57-YP80M4，YQRX57-YP90M4，YQRX57-YPB100M4，YQRX57-YPB112M4，YQRX57-YPB132M4，YQRX57-YPB63M4，YQRX57-YPB71M4，YQRX57-YPB80M4，YQRX57-YPB90M4，YQRX57-YPE100M4，YQRX57-YPE112M4，YQRX57-YPE132M4，YQRX57-YPE63M4，YQRX57-YPE71M4，YQRX57-YPE80M4，YQRX57-YPE90M4，YQRX57-YS100M4，YQRX57-YS112M4，YQRX57-YS132M4，YQRX57-YS63M4，YQRX57-YS71M4，YQRX57-YS80M4，YQRX57-YS90M4，YQRX57-YVB100M4，YQRX57-YVB112M4，YQRX57-YVB132M4，YQRX57-YVB63M4，YQRX57-YVB71M4，YQRX57-YVB80M4，YQRX57-YVB90M4，YQRX57-YVP100M4，YQRX57-YVP112M4，YQRX57-YVP132M4，YQRX57-YVP63M4，YQRX57-YVP71M4，YQRX57-YVP80M4，YQRX57-YVP90M4，YQRX57-YVPEJ100M4，YQRX57-YVPEJ112M4，YQRX57-YVPEJ132M4，YQRX57-YVPEJ63M4，YQRX57-YVPEJ71M4，YQRX57-YVPEJ80M4，YQRX57-YVPEJ90M4，JCRX57-AM100M4，JCRX57-AM112M4，JCRX57-AM132M4，JCRX57-AM63M4，JCRX57-AM71M4，JCRX57-AM80M4，JCRX57-AM90M4，JCRX57-Y0.12KW，JCRX57-Y0.18KW，JCRX57-Y0.25KW，JCRX57-Y0.37KW，JCRX57-Y0.55KW，JCRX57-Y0.75KW，JCRX57-Y1.1KW，JCRX57-Y1.5KW，JCRX57-Y100M4，JCRX57-Y112M4，JCRX57-Y132M4，JCRX57-Y2.2KW，JCRX57-Y3KW，JCRX57-Y4KW，JCRX57-Y5.5KW，JCRX57-Y63M4，JCRX57-Y7.5KW，JCRX57-Y71M4，JCRX57-Y80M4，JCRX57-Y90M4，JCRX57-YB100M4，JCRX57-YB112M4，JCRX57-YB132M4，JCRX57-YB63M4，JCRX57-YB71M4，JCRX57-YB80M4，JCRX57-YB90M4，JCRX57-YDP100M4，JCRX57-YDP112M4，JCRX57-YDP132M4，JCRX57-YDP63M4，JCRX57-YDP71M4，JCRX57-YDP80M4，JCRX57-YDP90M4，JCRX57-YE100M4，JCRX57-YE112M4，JCRX57-YE132M4，JCRX57-YE63M4，JCRX57-YE71M4，JCRX57-YE80M4，JCRX57-YE90M4，JCRX57-YEJ100M4，JCRX57-YEJ112M4，JCRX57-YEJ132M4，JCRX57-YEJ63M4，JCRX57-YEJ71M4，JCRX57-YEJ80M4，JCRX57-YEJ90M4，JCRX57-YEJB100M4，JCRX57-YEJB112M4，JCRX57-YEJB132M4，JCRX57-YEJB63M4，JCRX57-YEJB71M4，JCRX57-YEJB80M4，JCRX57-YEJB90M4，JCRX57-YP100M4，JCRX57-YP112M4，JCRX57-YP132M4，JCRX57-YP63M4，JCRX57-YP71M4，JCRX57-YP80M4，JCRX57-YP90M4，JCRX57-YPB100M4，JCRX57-YPB112M4，JCRX57-YPB132M4，JCRX57-YPB63M4，JCRX57-YPB71M4，JCRX57-YPB80M4，JCRX57-YPB90M4，JCRX57-YPE100M4，JCRX57-YPE112M4，JCRX57-YPE132M4，JCRX57-YPE63M4，JCRX57-YPE71M4，JCRX57-YPE80M4，JCRX57-YPE90M4，JCRX57-YS100M4，JCRX57-YS112M4，JCRX57-YS132M4，JCRX57-YS63M4，JCRX57-YS71M4，JCRX57-YS80M4，JCRX57-YS90M4，JCRX57-YVB100M4，JCRX57-YVB112M4，JCRX57-YVB132M4，JCRX57-YVB63M4，JCRX57-YVB71M4，JCRX57-YVB80M4，JCRX57-YVB90M4，JCRX57-YVP100M4，JCRX57-YVP112M4，JCRX57-YVP132M4，JCRX57-YVP63M4，JCRX57-YVP71M4，JCRX57-YVP80M4，JCRX57-YVP90M4，JCRX57-YVPEJ100M4，JCRX57-YVPEJ112M4，JCRX57-YVPEJ132M4，JCRX57-YVPEJ63M4，JCRX57-YVPEJ71M4，JCRX57-YVPEJ80M4，JCRX57-YVPEJ90M4。

RX59減速機生產廠家展示：看廠請聯系微信13827261050，獲取位置，需提前一天預約http://www.0668room.com/product/list-rxxiliejiansuji-cn.html

推薦類似型號：R59減速機
