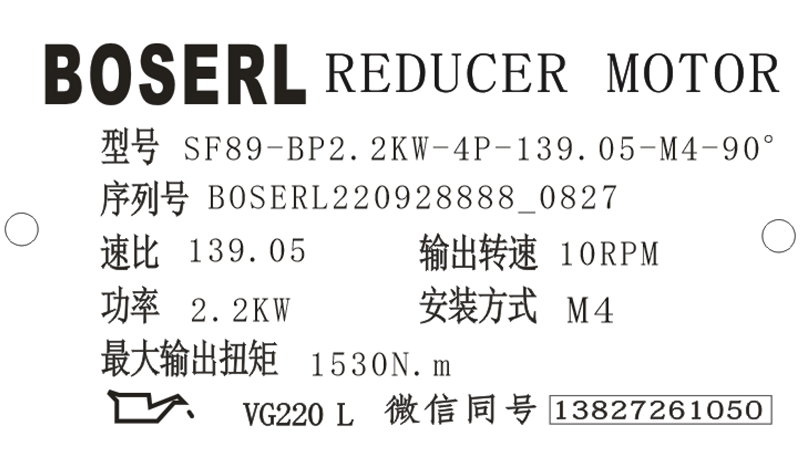

SF89減速器銘牌參數說明解讀含義：有關型號描述的詳細情況及其他信息可以參閱本業附件下載中的SF89減速器選型樣本。

SF89-BP2.2KW-4P-139.05-M4-90°

SF：系列代號

89：減速機規格代號

BP：電機

2.2KW：電機功率

4P：電機級數

139.05：減速機傳動比

M4：減速機安裝位置

90°：接線盒位置

SF89減速器透氣閥開啟操作教程：

安裝時檢查透氣閥是否開啟，若透氣閥未開啟，則必須在啟動SF89減速器前拆下透氣閥的運輸保險！齒輪減速電機

第一步帶運輸橡膠圈的透氣閥；

第二步拆下運輸橡膠圈；

第三步已經開啟的透氣閥。

SF89減速器安裝操作的正確方法：

SF89減速器實心軸輸出與輸出部件的裝配：不當裝配可能對軸承、箱體或軸造成損傷，可能造成財產損失！只能采用裝配夾具安裝輸入和輸出部件。利用軸端面上現有的螺紋對中孔進行定位裝配；嚴禁用錘擊方式將皮帶輪、聯軸器，小齒輪等裝入軸端部；安裝皮帶輪時皮帶的正確張力要根據制造商的規定；裝配的傳動件應當進行動平衡，并且不允許出現超出許可的徑向力或者軸向力（許可值參見“本頁面附件下載中的SF89減速器選型樣本”）。自鎖減速機

SF89減速器潮濕或露天場地的安裝：若要在潮濕場地或露天情況下使用驅動設備，則設備要做防腐設計，供貨時噴涂相應的表面防護漆。對可能出現的油漆剝落（如透氣閥或吊耳出），進行修補。將電機安裝到聯軸器AM、AD時，法蘭表面要采用合適的密封膠，例如Loctitlre518進行密封。

SF89減速器的透氣：安裝位置為M1、M3、M5以及M6中的R19、R29和F29無需透氣裝置。正常情況BOSERL公司都會在供貨時根據訂購的安裝位置將透氣閥裝好并開啟；例外情況：對于下列SF89減速器，BOSERL公司供貨時將在設置的透氣孔上安裝密封螺栓。條件允許的情況下，采用傳動式安裝位置，傾斜位置安裝的SF89減速器，啟動SF89減速器前請以隨機提供的透氣閥換下位于最高位置的密封螺栓。伺服電機蝸輪蝸桿減速機

SF89減速器噴漆：噴漆或補漆時可能對透氣閥和油封造成損傷，要求噴漆前對透氣閥和油封的密封唇進行細致封堵；噴漆后撕去封堵粘條。

SF89減速器型號：

NSF87-Y0.55KW，NSF87-Y0.75KW，NSF87-Y1.1KW，NSF87-Y1.5KW，NSF87-Y100M4，NSF87-Y112M4，NSF87-Y11KW，NSF87-Y132M4，NSF87-Y15KW，NSF87-Y160M4，NSF87-Y2.2KW，NSF87-Y3KW，NSF87-Y4KW，NSF87-Y5.5KW，NSF87-Y7.5KW，NSF87-Y71M4，NSF87-Y80M4，NSF87-Y90M4，NSF87-YB100M4，NSF87-YB112M4，NSF87-YB132M4，NSF87-YB160M4，NSF87-YB71M4，NSF87-YB80M4，NSF87-YB90M4，NSF87-YDP100M4，NSF87-YDP112M4，NSF87-YDP132M4，NSF87-YDP160M4，NSF87-YDP71M4，NSF87-YDP80M4，NSF87-YDP90M4，NSF87-YE100M4，NSF87-YE112M4，NSF87-YE132M4，NSF87-YE160M4，NSF87-YE71M4，NSF87-YE80M4，NSF87-YE90M4，NSF87-YEJ100M4，NSF87-YEJ112M4，NSF87-YEJ132M4，NSF87-YEJ160M4，NSF87-YEJ71M4，NSF87-YEJ80M4，NSF87-YEJ90M4，NSF87-YEJB100M4，NSF87-YEJB112M4，NSF87-YEJB132M4，NSF87-YEJB160M4，NSF87-YEJB71M4，NSF87-YEJB80M4，NSF87-YEJB90M4，NSF87-YP100M4，NSF87-YP112M4，NSF87-YP132M4，NSF87-YP160M4，NSF87-YP71M4，NSF87-YP80M4，NSF87-YP90M4，NSF87-YPB100M4，NSF87-YPB112M4，NSF87-YPB132M4，NSF87-YPB160M4，NSF87-YPB71M4，NSF87-YPB80M4，NSF87-YPB90M4，NSF87-YPE100M4，NSF87-YPE112M4，NSF87-YPE132M4，NSF87-YPE160M4，NSF87-YPE71M4，NSF87-YPE80M4，NSF87-YPE90M4，NSF87-YS100M4，NSF87-YS112M4，NSF87-YS132M4，NSF87-YS160M4，NSF87-YS71M4，NSF87-YS80M4，NSF87-YS90M4，NSF87-YVB100M4，NSF87-YVB112M4，NSF87-YVB132M4，NSF87-YVB160M4，NSF87-YVB71M4，NSF87-YVB80M4，NSF87-YVB90M4，NSF87-YVP100M4，NSF87-YVP112M4，NSF87-YVP132M4，NSF87-YVP160M4，NSF87-YVP71M4，NSF87-YVP80M4，NSF87-YVP90M4，NSF87-YVPEJ100M4，NSF87-YVPEJ112M4，NSF87-YVPEJ132M4，NSF87-YVPEJ160M4，NSF87-YVPEJ71M4，NSF87-YVPEJ80M4，NSF87-YVPEJ90M4，WSF87-Y0.55KW，WSF87-Y0.75KW，WSF87-Y1.1KW，WSF87-Y1.5KW，WSF87-Y100M4，WSF87-Y112M4，WSF87-Y11KW，WSF87-Y132M4，WSF87-Y15KW，WSF87-Y160M4，WSF87-Y2.2KW，WSF87-Y3KW，WSF87-Y4KW，WSF87-Y5.5KW，WSF87-Y7.5KW，WSF87-Y71M4，WSF87-Y80M4，WSF87-Y90M4，WSF87-YB100M4，WSF87-YB112M4，WSF87-YB132M4，WSF87-YB160M4，WSF87-YB71M4，WSF87-YB80M4，WSF87-YB90M4，WSF87-YDP100M4，WSF87-YDP112M4，WSF87-YDP132M4，WSF87-YDP160M4，WSF87-YDP71M4，WSF87-YDP80M4，WSF87-YDP90M4，WSF87-YE100M4，WSF87-YE112M4，WSF87-YE132M4，WSF87-YE160M4，WSF87-YE71M4，WSF87-YE80M4，WSF87-YE90M4，WSF87-YEJ100M4，WSF87-YEJ112M4，WSF87-YEJ132M4，WSF87-YEJ160M4，WSF87-YEJ71M4，WSF87-YEJ80M4，WSF87-YEJ90M4，WSF87-YEJB100M4，WSF87-YEJB112M4，WSF87-YEJB132M4，WSF87-YEJB160M4，WSF87-YEJB71M4，WSF87-YEJB80M4，WSF87-YEJB90M4，WSF87-YP100M4，WSF87-YP112M4，WSF87-YP132M4，WSF87-YP160M4，WSF87-YP71M4，WSF87-YP80M4，WSF87-YP90M4，WSF87-YPB100M4，WSF87-YPB112M4，WSF87-YPB132M4，WSF87-YPB160M4，WSF87-YPB71M4，WSF87-YPB80M4，WSF87-YPB90M4，WSF87-YPE100M4，WSF87-YPE112M4，WSF87-YPE132M4，WSF87-YPE160M4，WSF87-YPE71M4，WSF87-YPE80M4，WSF87-YPE90M4，WSF87-YS100M4，WSF87-YS112M4，WSF87-YS132M4，WSF87-YS160M4，WSF87-YS71M4，WSF87-YS80M4，WSF87-YS90M4，WSF87-YVB100M4，WSF87-YVB112M4，WSF87-YVB132M4，WSF87-YVB160M4，WSF87-YVB71M4，WSF87-YVB80M4，WSF87-YVB90M4，WSF87-YVP100M4，WSF87-YVP112M4，WSF87-YVP132M4，WSF87-YVP160M4，WSF87-YVP71M4，WSF87-YVP80M4，WSF87-YVP90M4，WSF87-YVPEJ100M4，WSF87-YVPEJ112M4，WSF87-YVPEJ132M4，WSF87-YVPEJ160M4，WSF87-YVPEJ71M4，WSF87-YVPEJ80M4，WSF87-YVPEJ90M4，ASF87-Y0.55KW，ASF87-Y0.75KW，ASF87-Y1.1KW，ASF87-Y1.5KW，ASF87-Y100M4，ASF87-Y112M4，ASF87-Y11KW，ASF87-Y132M4，ASF87-Y15KW，ASF87-Y160M4，ASF87-Y2.2KW，ASF87-Y3KW，ASF87-Y4KW，ASF87-Y5.5KW，ASF87-Y7.5KW，ASF87-Y71M4，ASF87-Y80M4，ASF87-Y90M4，ASF87-YB100M4，ASF87-YB112M4，ASF87-YB132M4，ASF87-YB160M4，ASF87-YB71M4，ASF87-YB80M4，ASF87-YB90M4，ASF87-YDP100M4，ASF87-YDP112M4，ASF87-YDP132M4，ASF87-YDP160M4，ASF87-YDP71M4，ASF87-YDP80M4，ASF87-YDP90M4，ASF87-YE100M4，ASF87-YE112M4，ASF87-YE132M4，ASF87-YE160M4，ASF87-YE71M4，ASF87-YE80M4，ASF87-YE90M4，ASF87-YEJ100M4，ASF87-YEJ112M4，ASF87-YEJ132M4，ASF87-YEJ160M4，ASF87-YEJ71M4，ASF87-YEJ80M4，ASF87-YEJ90M4，ASF87-YEJB100M4，ASF87-YEJB112M4，ASF87-YEJB132M4，ASF87-YEJB160M4，ASF87-YEJB71M4，ASF87-YEJB80M4，ASF87-YEJB90M4，ASF87-YP100M4，ASF87-YP112M4，ASF87-YP132M4，ASF87-YP160M4，ASF87-YP71M4，ASF87-YP80M4，ASF87-YP90M4，ASF87-YPB100M4，ASF87-YPB112M4，ASF87-YPB132M4，ASF87-YPB160M4，ASF87-YPB71M4，ASF87-YPB80M4，ASF87-YPB90M4，ASF87-YPE100M4，ASF87-YPE112M4，ASF87-YPE132M4，ASF87-YPE160M4，ASF87-YPE71M4，ASF87-YPE80M4，ASF87-YPE90M4，ASF87-YS100M4，ASF87-YS112M4，ASF87-YS132M4，ASF87-YS160M4，ASF87-YS71M4，ASF87-YS80M4，ASF87-YS90M4，ASF87-YVB100M4，ASF87-YVB112M4，ASF87-YVB132M4，ASF87-YVB160M4，ASF87-YVB71M4，ASF87-YVB80M4，ASF87-YVB90M4，ASF87-YVP100M4，ASF87-YVP112M4，ASF87-YVP132M4，ASF87-YVP160M4，ASF87-YVP71M4，ASF87-YVP80M4，ASF87-YVP90M4，ASF87-YVPEJ100M4，ASF87-YVPEJ112M4，ASF87-YVPEJ132M4，ASF87-YVPEJ160M4，ASF87-YVPEJ71M4，ASF87-YVPEJ80M4，ASF87-YVPEJ90M4，SSF87-Y0.55KW，SSF87-Y0.75KW，SSF87-Y1.1KW，SSF87-Y1.5KW，SSF87-Y100M4，SSF87-Y112M4，SSF87-Y11KW，SSF87-Y132M4，SSF87-Y15KW，SSF87-Y160M4，SSF87-Y2.2KW，SSF87-Y3KW，SSF87-Y4KW，SSF87-Y5.5KW，SSF87-Y7.5KW，SSF87-Y71M4，SSF87-Y80M4，SSF87-Y90M4，SSF87-YB100M4，SSF87-YB112M4，SSF87-YB132M4，SSF87-YB160M4，SSF87-YB71M4，SSF87-YB80M4，SSF87-YB90M4，SSF87-YDP100M4，SSF87-YDP112M4，SSF87-YDP132M4，SSF87-YDP160M4，SSF87-YDP71M4，SSF87-YDP80M4，SSF87-YDP90M4，SSF87-YE100M4，SSF87-YE112M4，SSF87-YE132M4，SSF87-YE160M4，SSF87-YE71M4，SSF87-YE80M4，SSF87-YE90M4，SSF87-YEJ100M4，SSF87-YEJ112M4，SSF87-YEJ132M4，SSF87-YEJ160M4，SSF87-YEJ71M4，SSF87-YEJ80M4，SSF87-YEJ90M4，SSF87-YEJB100M4，SSF87-YEJB112M4，SSF87-YEJB132M4，SSF87-YEJB160M4，SSF87-YEJB71M4，SSF87-YEJB80M4，SSF87-YEJB90M4，SSF87-YP100M4，SSF87-YP112M4，SSF87-YP132M4，SSF87-YP160M4，SSF87-YP71M4，SSF87-YP80M4，SSF87-YP90M4，SSF87-YPB100M4，SSF87-YPB112M4，SSF87-YPB132M4，SSF87-YPB160M4，SSF87-YPB71M4，SSF87-YPB80M4，SSF87-YPB90M4，SSF87-YPE100M4，SSF87-YPE112M4，SSF87-YPE132M4，SSF87-YPE160M4，SSF87-YPE71M4，SSF87-YPE80M4，SSF87-YPE90M4，SSF87-YS100M4，SSF87-YS112M4，SSF87-YS132M4，SSF87-YS160M4，SSF87-YS71M4，SSF87-YS80M4，SSF87-YS90M4，SSF87-YVB100M4，SSF87-YVB112M4，SSF87-YVB132M4，SSF87-YVB160M4，SSF87-YVB71M4，SSF87-YVB80M4，SSF87-YVB90M4，SSF87-YVP100M4，SSF87-YVP112M4，SSF87-YVP132M4，SSF87-YVP160M4，SSF87-YVP71M4，SSF87-YVP80M4，SSF87-YVP90M4，SSF87-YVPEJ100M4，SSF87-YVPEJ112M4，SSF87-YVPEJ132M4，SSF87-YVPEJ160M4，SSF87-YVPEJ71M4，SSF87-YVPEJ80M4，SSF87-YVPEJ90M4，GSF89-Y0.55KW，GSF89-Y0.75KW，GSF89-Y1.1KW，GSF89-Y1.5KW，GSF89-Y100M4，GSF89-Y112M4，GSF89-Y11KW，GSF89-Y132M4，GSF89-Y15KW，GSF89-Y160M4，GSF89-Y2.2KW，GSF89-Y3KW，GSF89-Y4KW，GSF89-Y5.5KW，GSF89-Y7.5KW，GSF89-Y71M4，GSF89-Y80M4，GSF89-Y90M4，GSF89-YB100M4，GSF89-YB112M4，GSF89-YB132M4，GSF89-YB160M4，GSF89-YB71M4，GSF89-YB80M4，GSF89-YB90M4，GSF89-YDP100M4，GSF89-YDP112M4，GSF89-YDP132M4，GSF89-YDP160M4，GSF89-YDP71M4，GSF89-YDP80M4，GSF89-YDP90M4，GSF89-YE100M4，GSF89-YE112M4，GSF89-YE132M4，GSF89-YE160M4，GSF89-YE71M4，GSF89-YE80M4，GSF89-YE90M4，GSF89-YEJ100M4，GSF89-YEJ112M4，GSF89-YEJ132M4，GSF89-YEJ160M4，GSF89-YEJ71M4，GSF89-YEJ80M4，GSF89-YEJ90M4，GSF89-YEJB100M4，GSF89-YEJB112M4，GSF89-YEJB132M4，GSF89-YEJB160M4，GSF89-YEJB71M4，GSF89-YEJB80M4，GSF89-YEJB90M4，GSF89-YP100M4，GSF89-YP112M4，GSF89-YP132M4，GSF89-YP160M4，GSF89-YP71M4，GSF89-YP80M4，GSF89-YP90M4，GSF89-YPB100M4，GSF89-YPB112M4，GSF89-YPB132M4，GSF89-YPB160M4，GSF89-YPB71M4，GSF89-YPB80M4，GSF89-YPB90M4，GSF89-YPE100M4，GSF89-YPE112M4，GSF89-YPE132M4，GSF89-YPE160M4，GSF89-YPE71M4，GSF89-YPE80M4，GSF89-YPE90M4，GSF89-YS100M4，GSF89-YS112M4，GSF89-YS132M4，GSF89-YS160M4，GSF89-YS71M4，GSF89-YS80M4，GSF89-YS90M4，GSF89-YVB100M4，GSF89-YVB112M4，GSF89-YVB132M4，GSF89-YVB160M4，GSF89-YVB71M4，GSF89-YVB80M4，GSF89-YVB90M4，GSF89-YVP100M4，GSF89-YVP112M4，GSF89-YVP132M4，GSF89-YVP160M4，GSF89-YVP71M4，GSF89-YVP80M4，GSF89-YVP90M4，GSF89-YVPEJ100M4，GSF89-YVPEJ112M4，GSF89-YVPEJ132M4，GSF89-YVPEJ160M4，GSF89-YVPEJ71M4，GSF89-YVPEJ80M4，GSF89-YVPEJ90M4，SF87SF80，SF87SF90，SF87SF100，SF87SF112，SF87SF115，SF87SF140，SF87SF160，SF87SF190。

SF89減速器生產廠家展示：看廠請聯系微信13827261050，獲取位置，需提前一天預約http://www.0668room.com/product/list-sfxiliejiansuji-cn.html

推薦類似型號：S89減速機
