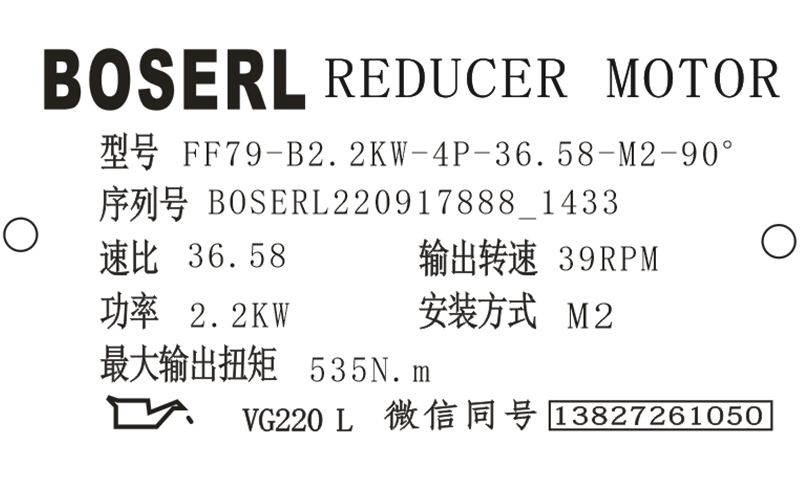

FF79減速器銘牌參數說明解讀含義：有關型號描述的詳細情況及其他信息可以參閱本業附件下載中的FF79減速器選型樣本。

FF79-B2.2KW-4P-36.58-M2-90°

FF：系列代號

79：減速機規格代號

B：電機

2.2KW：電機功率

4P：電機級數

36.58：減速機傳動比

M2：減速機安裝位置

90°：接線盒位置

FF79減速器透氣閥開啟操作教程：

安裝時檢查透氣閥是否開啟，若透氣閥未開啟，則必須在啟動FF79減速器前拆下透氣閥的運輸保險！平行軸斜齒輪減速機

第一步帶運輸橡膠圈的透氣閥；

第二步拆下運輸橡膠圈；

第三步已經開啟的透氣閥。

FF79減速器安裝操作的正確方法：

FF79減速器的透氣：安裝位置為M1、M3、M5以及M6中的R19、R29和F29無需透氣裝置。正常情況BOSERL公司都會在供貨時根據訂購的安裝位置將透氣閥裝好并開啟；例外情況：對于下列FF79減速器，BOSERL公司供貨時將在設置的透氣孔上安裝密封螺栓。條件允許的情況下，采用傳動式安裝位置，傾斜位置安裝的FF79減速器，啟動FF79減速器前請以隨機提供的透氣閥換下位于最高位置的密封螺栓。齒輪減速電機

FF79減速器噴漆：噴漆或補漆時可能對透氣閥和油封造成損傷，要求噴漆前對透氣閥和油封的密封唇進行細致封堵；噴漆后撕去封堵粘條。

FF79減速器實心軸輸出與輸出部件的裝配：不當裝配可能對軸承、箱體或軸造成損傷，可能造成財產損失！只能采用裝配夾具安裝輸入和輸出部件。利用軸端面上現有的螺紋對中孔進行定位裝配；嚴禁用錘擊方式將皮帶輪、聯軸器，小齒輪等裝入軸端部；安裝皮帶輪時皮帶的正確張力要根據制造商的規定；裝配的傳動件應當進行動平衡，并且不允許出現超出許可的徑向力或者軸向力（許可值參見“本頁面附件下載中的FF79減速器選型樣本”）。

FF79減速器潮濕或露天場地的安裝：若要在潮濕場地或露天情況下使用驅動設備，則設備要做防腐設計，供貨時噴涂相應的表面防護漆。對可能出現的油漆剝落（如透氣閥或吊耳出），進行修補。將電機安裝到聯軸器AM、AD時，法蘭表面要采用合適的密封膠，例如Loctitlre518進行密封。剎車電機減速機

FF79減速器型號：

XDFF77-Y0.18KW，XDFF77-Y0.25KW，XDFF77-Y0.37KW，XDFF77-Y0.55KW，XDFF77-Y0.75KW，XDFF77-Y1.1KW，XDFF77-Y1.5KW，XDFF77-Y100M4，XDFF77-Y112M4，XDFF77-Y11KW，XDFF77-Y132M4，XDFF77-Y160M4，XDFF77-Y2.2KW，XDFF77-Y3KW，XDFF77-Y4KW，XDFF77-Y5.5KW，XDFF77-Y63M4，XDFF77-Y7.5KW，XDFF77-Y71M4，XDFF77-Y80M4，XDFF77-Y90M4，XDFF77-YB100M4，XDFF77-YB112M4，XDFF77-YB132M4，XDFF77-YB160M4，XDFF77-YB63M4，XDFF77-YB71M4，XDFF77-YB80M4，XDFF77-YB90M4，XDFF77-YDP100M4，XDFF77-YDP112M4，XDFF77-YDP132M4，XDFF77-YDP160M4，XDFF77-YDP63M4，XDFF77-YDP71M4，XDFF77-YDP80M4，XDFF77-YDP90M4，XDFF77-YE100M4，XDFF77-YE112M4，XDFF77-YE132M4，XDFF77-YE160M4，XDFF77-YE63M4，XDFF77-YE71M4，XDFF77-YE80M4，XDFF77-YE90M4，XDFF77-YEJ100M4，XDFF77-YEJ112M4，XDFF77-YEJ132M4，XDFF77-YEJ160M4，XDFF77-YEJ63M4，XDFF77-YEJ71M4，XDFF77-YEJ80M4，XDFF77-YEJ90M4，XDFF77-YEJB100M4，XDFF77-YEJB112M4，XDFF77-YEJB132M4，XDFF77-YEJB160M4，XDFF77-YEJB63M4，XDFF77-YEJB71M4，XDFF77-YEJB80M4，XDFF77-YEJB90M4，XDFF77-YP100M4，XDFF77-YP112M4，XDFF77-YP132M4，XDFF77-YP160M4，XDFF77-YP63M4，XDFF77-YP71M4，XDFF77-YP80M4，XDFF77-YP90M4，XDFF77-YPB100M4，XDFF77-YPB112M4，XDFF77-YPB132M4，XDFF77-YPB160M4，XDFF77-YPB63M4，XDFF77-YPB71M4，XDFF77-YPB80M4，XDFF77-YPB90M4，XDFF77-YPE100M4，XDFF77-YPE112M4，XDFF77-YPE132M4，XDFF77-YPE160M4，XDFF77-YPE63M4，XDFF77-YPE71M4，XDFF77-YPE80M4，XDFF77-YPE90M4，XDFF77-YS100M4，XDFF77-YS112M4，XDFF77-YS132M4，XDFF77-YS160M4，XDFF77-YS63M4，XDFF77-YS71M4，XDFF77-YS80M4，XDFF77-YS90M4，XDFF77-YVB100M4，XDFF77-YVB112M4，XDFF77-YVB132M4，XDFF77-YVB160M4，XDFF77-YVB63M4，XDFF77-YVB71M4，XDFF77-YVB80M4，XDFF77-YVB90M4，XDFF77-YVP100M4，XDFF77-YVP112M4，XDFF77-YVP132M4，XDFF77-YVP160M4，XDFF77-YVP63M4，XDFF77-YVP71M4，XDFF77-YVP80M4，XDFF77-YVP90M4，XDFF77-YVPEJ100M4，XDFF77-YVPEJ112M4，XDFF77-YVPEJ132M4，XDFF77-YVPEJ160M4，XDFF77-YVPEJ63M4，XDFF77-YVPEJ71M4，XDFF77-YVPEJ80M4，XDFF77-YVPEJ90M4，JCFF77-Y0.18KW，JCFF77-Y0.25KW，JCFF77-Y0.37KW，JCFF77-Y0.55KW，JCFF77-Y0.75KW，JCFF77-Y1.1KW，JCFF77-Y1.5KW，JCFF77-Y100M4，JCFF77-Y112M4，JCFF77-Y11KW，JCFF77-Y132M4，JCFF77-Y160M4，JCFF77-Y2.2KW，JCFF77-Y3KW，JCFF77-Y4KW，JCFF77-Y5.5KW，JCFF77-Y63M4，JCFF77-Y7.5KW，JCFF77-Y71M4，JCFF77-Y80M4，JCFF77-Y90M4，JCFF77-YB100M4，JCFF77-YB112M4，JCFF77-YB132M4，JCFF77-YB160M4，JCFF77-YB63M4，JCFF77-YB71M4，JCFF77-YB80M4，JCFF77-YB90M4，JCFF77-YDP100M4，JCFF77-YDP112M4，JCFF77-YDP132M4，JCFF77-YDP160M4，JCFF77-YDP63M4，JCFF77-YDP71M4，JCFF77-YDP80M4，JCFF77-YDP90M4，JCFF77-YE100M4，JCFF77-YE112M4，JCFF77-YE132M4，JCFF77-YE160M4，JCFF77-YE63M4，JCFF77-YE71M4，JCFF77-YE80M4，JCFF77-YE90M4，JCFF77-YEJ100M4，JCFF77-YEJ112M4，JCFF77-YEJ132M4，JCFF77-YEJ160M4，JCFF77-YEJ63M4，JCFF77-YEJ71M4，JCFF77-YEJ80M4，JCFF77-YEJ90M4，JCFF77-YEJB100M4，JCFF77-YEJB112M4，JCFF77-YEJB132M4，JCFF77-YEJB160M4，JCFF77-YEJB63M4，JCFF77-YEJB71M4，JCFF77-YEJB80M4，JCFF77-YEJB90M4，JCFF77-YP100M4，JCFF77-YP112M4，JCFF77-YP132M4，JCFF77-YP160M4，JCFF77-YP63M4，JCFF77-YP71M4，JCFF77-YP80M4，JCFF77-YP90M4，JCFF77-YPB100M4，JCFF77-YPB112M4，JCFF77-YPB132M4，JCFF77-YPB160M4，JCFF77-YPB63M4，JCFF77-YPB71M4，JCFF77-YPB80M4，JCFF77-YPB90M4，JCFF77-YPE100M4，JCFF77-YPE112M4，JCFF77-YPE132M4，JCFF77-YPE160M4，JCFF77-YPE63M4，JCFF77-YPE71M4，JCFF77-YPE80M4，JCFF77-YPE90M4，JCFF77-YS100M4，JCFF77-YS112M4，JCFF77-YS132M4，JCFF77-YS160M4，JCFF77-YS63M4，JCFF77-YS71M4，JCFF77-YS80M4，JCFF77-YS90M4，JCFF77-YVB100M4，JCFF77-YVB112M4，JCFF77-YVB132M4，JCFF77-YVB160M4，JCFF77-YVB63M4，JCFF77-YVB71M4，JCFF77-YVB80M4，JCFF77-YVB90M4，JCFF77-YVP100M4，JCFF77-YVP112M4，JCFF77-YVP132M4，JCFF77-YVP160M4，JCFF77-YVP63M4，JCFF77-YVP71M4，JCFF77-YVP80M4，JCFF77-YVP90M4，JCFF77-YVPEJ100M4，JCFF77-YVPEJ112M4，JCFF77-YVPEJ132M4，JCFF77-YVPEJ160M4，JCFF77-YVPEJ63M4，JCFF77-YVPEJ71M4，JCFF77-YVPEJ80M4，JCFF77-YVPEJ90M4，F(xiàn)WF77-Y0.18KW，F(xiàn)WF77-Y0.25KW，F(xiàn)WF77-Y0.37KW，F(xiàn)WF77-Y0.55KW，F(xiàn)WF77-Y0.75KW，F(xiàn)WF77-Y1.1KW，F(xiàn)WF77-Y1.5KW，F(xiàn)WF77-Y100M4，F(xiàn)WF77-Y112M4，F(xiàn)WF77-Y11KW，F(xiàn)WF77-Y132M4，F(xiàn)WF77-Y160M4，F(xiàn)WF77-Y2.2KW，F(xiàn)WF77-Y3KW，F(xiàn)WF77-Y4KW，F(xiàn)WF77-Y5.5KW，F(xiàn)WF77-Y63M4，F(xiàn)WF77-Y7.5KW，F(xiàn)WF77-Y71M4，F(xiàn)WF77-Y80M4，F(xiàn)WF77-Y90M4，F(xiàn)WF77-YB100M4，F(xiàn)WF77-YB112M4，F(xiàn)WF77-YB132M4，F(xiàn)WF77-YB160M4，F(xiàn)WF77-YB63M4，F(xiàn)WF77-YB71M4，F(xiàn)WF77-YB80M4，F(xiàn)WF77-YB90M4，F(xiàn)WF77-YDP100M4，F(xiàn)WF77-YDP112M4，F(xiàn)WF77-YDP132M4，F(xiàn)WF77-YDP160M4，F(xiàn)WF77-YDP63M4，F(xiàn)WF77-YDP71M4，F(xiàn)WF77-YDP80M4，F(xiàn)WF77-YDP90M4，F(xiàn)WF77-YE100M4，F(xiàn)WF77-YE112M4，F(xiàn)WF77-YE132M4，F(xiàn)WF77-YE160M4，F(xiàn)WF77-YE63M4，F(xiàn)WF77-YE71M4，F(xiàn)WF77-YE80M4，F(xiàn)WF77-YE90M4，F(xiàn)WF77-YEJ100M4，F(xiàn)WF77-YEJ112M4，F(xiàn)WF77-YEJ132M4，F(xiàn)WF77-YEJ160M4，F(xiàn)WF77-YEJ63M4，F(xiàn)WF77-YEJ71M4，F(xiàn)WF77-YEJ80M4，F(xiàn)WF77-YEJ90M4，F(xiàn)WF77-YEJB100M4，F(xiàn)WF77-YEJB112M4，F(xiàn)WF77-YEJB132M4，F(xiàn)WF77-YEJB160M4，F(xiàn)WF77-YEJB63M4，F(xiàn)WF77-YEJB71M4，F(xiàn)WF77-YEJB80M4，F(xiàn)WF77-YEJB90M4，F(xiàn)WF77-YP100M4，F(xiàn)WF77-YP112M4，F(xiàn)WF77-YP132M4，F(xiàn)WF77-YP160M4，F(xiàn)WF77-YP63M4，F(xiàn)WF77-YP71M4，F(xiàn)WF77-YP80M4，F(xiàn)WF77-YP90M4，F(xiàn)WF77-YPB100M4，F(xiàn)WF77-YPB112M4，F(xiàn)WF77-YPB132M4，F(xiàn)WF77-YPB160M4，F(xiàn)WF77-YPB63M4，F(xiàn)WF77-YPB71M4，F(xiàn)WF77-YPB80M4，F(xiàn)WF77-YPB90M4，F(xiàn)WF77-YPE100M4，F(xiàn)WF77-YPE112M4，F(xiàn)WF77-YPE132M4，F(xiàn)WF77-YPE160M4，F(xiàn)WF77-YPE63M4，F(xiàn)WF77-YPE71M4，F(xiàn)WF77-YPE80M4，F(xiàn)WF77-YPE90M4，F(xiàn)WF77-YS100M4，F(xiàn)WF77-YS112M4，F(xiàn)WF77-YS132M4，F(xiàn)WF77-YS160M4，F(xiàn)WF77-YS63M4，F(xiàn)WF77-YS71M4，F(xiàn)WF77-YS80M4，F(xiàn)WF77-YS90M4，F(xiàn)WF77-YVB100M4，F(xiàn)WF77-YVB112M4，F(xiàn)WF77-YVB132M4，F(xiàn)WF77-YVB160M4，F(xiàn)WF77-YVB63M4，F(xiàn)WF77-YVB71M4，F(xiàn)WF77-YVB80M4，F(xiàn)WF77-YVB90M4，F(xiàn)WF77-YVP100M4，F(xiàn)WF77-YVP112M4，F(xiàn)WF77-YVP132M4，F(xiàn)WF77-YVP160M4，F(xiàn)WF77-YVP63M4，F(xiàn)WF77-YVP71M4，F(xiàn)WF77-YVP80M4，F(xiàn)WF77-YVP90M4，F(xiàn)WF77-YVPEJ100M4，F(xiàn)WF77-YVPEJ112M4，F(xiàn)WF77-YVPEJ132M4，F(xiàn)WF77-YVPEJ160M4，F(xiàn)WF77-YVPEJ63M4，F(xiàn)WF77-YVPEJ71M4，F(xiàn)WF77-YVPEJ80M4，F(xiàn)WF77-YVPEJ90M4，YQFF77-Y0.18KW，YQFF77-Y0.25KW，YQFF77-Y0.37KW，YQFF77-Y0.55KW，YQFF77-Y0.75KW，YQFF77-Y1.1KW，YQFF77-Y1.5KW，YQFF77-Y100M4，YQFF77-Y112M4，YQFF77-Y11KW，YQFF77-Y132M4，YQFF77-Y160M4，YQFF77-Y2.2KW，YQFF77-Y3KW，YQFF77-Y4KW，YQFF77-Y5.5KW，YQFF77-Y63M4，YQFF77-Y7.5KW，YQFF77-Y71M4，YQFF77-Y80M4，YQFF77-Y90M4，YQFF77-YB100M4，YQFF77-YB112M4，YQFF77-YB132M4，YQFF77-YB160M4，YQFF77-YB63M4，YQFF77-YB71M4，YQFF77-YB80M4，YQFF77-YB90M4，YQFF77-YDP100M4，YQFF77-YDP112M4，YQFF77-YDP132M4，YQFF77-YDP160M4，YQFF77-YDP63M4，YQFF77-YDP71M4，YQFF77-YDP80M4，YQFF77-YDP90M4，YQFF77-YE100M4，YQFF77-YE112M4，YQFF77-YE132M4，YQFF77-YE160M4，YQFF77-YE63M4，YQFF77-YE71M4，YQFF77-YE80M4，YQFF77-YE90M4，YQFF77-YEJ100M4，YQFF77-YEJ112M4，YQFF77-YEJ132M4，YQFF77-YEJ160M4，YQFF77-YEJ63M4，YQFF77-YEJ71M4，YQFF77-YEJ80M4，YQFF77-YEJ90M4，YQFF77-YEJB100M4，YQFF77-YEJB112M4，YQFF77-YEJB132M4，YQFF77-YEJB160M4，YQFF77-YEJB63M4，YQFF77-YEJB71M4，YQFF77-YEJB80M4，YQFF77-YEJB90M4，YQFF77-YP100M4，YQFF77-YP112M4，YQFF77-YP132M4，YQFF77-YP160M4，YQFF77-YP63M4，YQFF77-YP71M4，YQFF77-YP80M4，YQFF77-YP90M4，YQFF77-YPB100M4，YQFF77-YPB112M4，YQFF77-YPB132M4，YQFF77-YPB160M4，YQFF77-YPB63M4，YQFF77-YPB71M4，YQFF77-YPB80M4，YQFF77-YPB90M4，YQFF77-YPE100M4，YQFF77-YPE112M4，YQFF77-YPE132M4，YQFF77-YPE160M4，YQFF77-YPE63M4，YQFF77-YPE71M4，YQFF77-YPE80M4，YQFF77-YPE90M4，YQFF77-YS100M4，YQFF77-YS112M4，YQFF77-YS132M4，YQFF77-YS160M4，YQFF77-YS63M4，YQFF77-YS71M4，YQFF77-YS80M4，YQFF77-YS90M4，YQFF77-YVB100M4，YQFF77-YVB112M4，YQFF77-YVB132M4，YQFF77-YVB160M4，YQFF77-YVB63M4，YQFF77-YVB71M4，YQFF77-YVB80M4，YQFF77-YVB90M4，YQFF77-YVP100M4，YQFF77-YVP112M4，YQFF77-YVP132M4，YQFF77-YVP160M4，YQFF77-YVP63M4，YQFF77-YVP71M4，YQFF77-YVP80M4，YQFF77-YVP90M4，YQFF77-YVPEJ100M4，YQFF77-YVPEJ112M4，YQFF77-YVPEJ132M4，YQFF77-YVPEJ160M4，YQFF77-YVPEJ63M4，YQFF77-YVPEJ71M4，YQFF77-YVPEJ80M4，YQFF77-YVPEJ90M4，F(xiàn)F79-Y0.18KW，F(xiàn)F79-Y0.25KW，F(xiàn)F79-Y0.37KW，F(xiàn)F79-Y0.55KW，F(xiàn)F79-Y0.75KW，F(xiàn)F79-Y1.1KW，F(xiàn)F79-Y1.5KW，F(xiàn)F79-Y100M4，F(xiàn)F79-Y112M4，F(xiàn)F79-Y11KW，F(xiàn)F79-Y132M4，F(xiàn)F79-Y160M4，F(xiàn)F79-Y2.2KW，F(xiàn)F79-Y3KW，F(xiàn)F79-Y4KW，F(xiàn)F79-Y5.5KW，F(xiàn)F79-Y63M4，F(xiàn)F79-Y7.5KW，F(xiàn)F79-Y71M4，F(xiàn)F79-Y80M4，F(xiàn)F79-Y90M4，F(xiàn)F79-YB100M4，F(xiàn)F79-YB112M4，F(xiàn)F79-YB132M4，F(xiàn)F79-YB160M4，F(xiàn)F79-YB63M4，F(xiàn)F79-YB71M4，F(xiàn)F79-YB80M4，F(xiàn)F79-YB90M4，F(xiàn)F79-YDP100M4，F(xiàn)F79-YDP112M4，F(xiàn)F79-YDP132M4，F(xiàn)F79-YDP160M4，F(xiàn)F79-YDP63M4，F(xiàn)F79-YDP71M4，F(xiàn)F79-YDP80M4，F(xiàn)F79-YDP90M4，F(xiàn)F79-YE100M4，F(xiàn)F79-YE112M4，F(xiàn)F79-YE132M4，F(xiàn)F79-YE160M4，F(xiàn)F79-YE63M4，F(xiàn)F79-YE71M4，F(xiàn)F79-YE80M4，F(xiàn)F79-YE90M4，F(xiàn)F79-YEJ100M4，F(xiàn)F79-YEJ112M4，F(xiàn)F79-YEJ132M4，F(xiàn)F79-YEJ160M4，F(xiàn)F79-YEJ63M4，F(xiàn)F79-YEJ71M4，F(xiàn)F79-YEJ80M4，F(xiàn)F79-YEJ90M4，F(xiàn)F79-YEJB100M4，F(xiàn)F79-YEJB112M4，F(xiàn)F79-YEJB132M4，F(xiàn)F79-YEJB160M4，F(xiàn)F79-YEJB63M4，F(xiàn)F79-YEJB71M4，F(xiàn)F79-YEJB80M4，F(xiàn)F79-YEJB90M4，F(xiàn)F79-YP100M4，F(xiàn)F79-YP112M4，F(xiàn)F79-YP132M4，F(xiàn)F79-YP160M4，F(xiàn)F79-YP63M4，F(xiàn)F79-YP71M4，F(xiàn)F79-YP80M4，F(xiàn)F79-YP90M4，F(xiàn)F79-YPB100M4，F(xiàn)F79-YPB112M4，F(xiàn)F79-YPB132M4，F(xiàn)F79-YPB160M4，F(xiàn)F79-YPB63M4，F(xiàn)F79-YPB71M4，F(xiàn)F79-YPB80M4，F(xiàn)F79-YPB90M4，F(xiàn)F79-YPE100M4，F(xiàn)F79-YPE112M4，F(xiàn)F79-YPE132M4，F(xiàn)F79-YPE160M4，F(xiàn)F79-YPE63M4，F(xiàn)F79-YPE71M4，F(xiàn)F79-YPE80M4，F(xiàn)F79-YPE90M4，F(xiàn)F79-YS100M4，F(xiàn)F79-YS112M4，F(xiàn)F79-YS132M4，F(xiàn)F79-YS160M4，F(xiàn)F79-YS63M4，F(xiàn)F79-YS71M4，F(xiàn)F79-YS80M4，F(xiàn)F79-YS90M4，F(xiàn)F79-YVB100M4，F(xiàn)F79-YVB112M4，F(xiàn)F79-YVB132M4，F(xiàn)F79-YVB160M4，F(xiàn)F79-YVB63M4，F(xiàn)F79-YVB71M4，F(xiàn)F79-YVB80M4，F(xiàn)F79-YVB90M4，F(xiàn)F79-YVP100M4，F(xiàn)F79-YVP112M4，F(xiàn)F79-YVP132M4，F(xiàn)F79-YVP160M4，F(xiàn)F79-YVP63M4，F(xiàn)F79-YVP71M4，F(xiàn)F79-YVP80M4，F(xiàn)F79-YVP90M4，F(xiàn)F79-YVPEJ100M4，F(xiàn)F79-YVPEJ112M4，F(xiàn)F79-YVPEJ132M4，F(xiàn)F79-YVPEJ160M4，F(xiàn)F79-YVPEJ63M4，F(xiàn)F79-YVPEJ71M4，F(xiàn)F79-YVPEJ80M4，F(xiàn)F79-YVPEJ90M4，F(xiàn)F77SF80，F(xiàn)F77SF90，F(xiàn)F77SF100，F(xiàn)F77SF112，F(xiàn)F77SF115，F(xiàn)F77SF140，F(xiàn)F77SF160，F(xiàn)F77SF190。

FF79減速器生產廠家展示：看廠請聯系微信13827261050，獲取位置，需提前一天預約http://www.0668room.com/product/list-ffxiliejiansuji-cn.html

推薦類似型號：F79減速機
