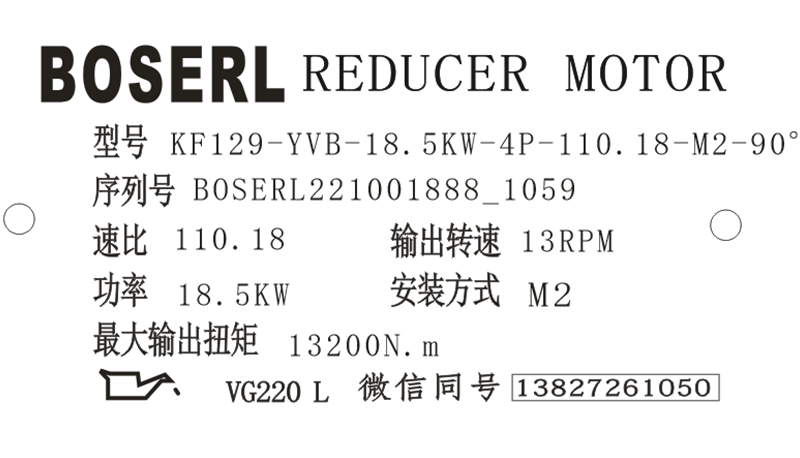

KF129減速機銘牌參數說明解讀含義：有關型號描述的詳細情況及其他信息可以參閱本業附件下載中的K129減速機選型樣本。

KF129-YVB-18.5KW-4P-110.18-M2-90°

KF：系列代號

129：減速機規格代號

YVB：電機

18.5KW：電機功率

4P：電機級數

110.18：減速機傳動比

M2：減速機安裝位置

90°：接線盒位置

KF129減速機潤滑油型號：

KF129減速機某些安裝位置發生攪油損失的機會較高。出現下列情況時請與BOSERL公司進行聯系：若無特殊規定，BOSERL公司發貨時會根據KF129減速機的安裝位置給驅動裝置加潤滑油，因此應在訂貨時指定安裝位置（M1…M6，參見“KF129減速機說明書中的安裝位置與訂貨說明”章節）。若之后對安裝位置需要改動，則加潤滑油必須與安裝位置相符（潤滑油加注量）。直角減速機

KF129減速機潤滑油加注量，具體值根據級數與傳動比的不同而各異。請您在加注潤滑油時一定注意油位螺栓所指示的精確油量。本頁附件中的KF129減速機選型樣本中列出了安裝位置從M1到M6KF129減速機相應的潤滑油加注標準，請自行下載查看。

KF129減速機特殊應用場合必須使用特殊潤滑油，比如要求長使用壽命潤滑油。若需要可提供用于食品行業和生物降解潤滑油。齒輪減速電機

KF129減速機推薦使用的潤滑油，其等級和粘度指標見下表：

KF129減速機使用說明：

KF129減速機警告說明：由于KF129減速機發熱或KF129減速機油溫過高可能引起燙傷；對KF129減速機進行操作前先冷卻；擰出油位檢查螺栓和放油螺栓時要格外小心。

KF129減速機注意事項：若未注入正確的KF129減速機油則可能造成潤滑油性能失效，可能造成財產損失；合成潤滑油不可能相互混用并不可與礦物潤滑油混用；礦物油用作標準的潤滑油，不能用于特殊行業。

KF129減速機提示事項：油位檢查螺栓、放油螺栓、以及透氣閥的位置在安裝位置上，要參見KF129減速機說明書安裝位置章節中的內容。

KF129減速機的螺母：立式安裝KF129減速機輸出法蘭螺母規格M16；KF129減速機螺母/螺母擰緊扭矩強度等級10.9。伺服電機減速機

KF129減速機危險使用說明：驅動裝置意外啟動會造成擠傷，可能造成重傷或死亡；開始工作前，應先斷開減速電機的電源并且采取措施防止意外接通！

KF129減速機型號：

WKF127-Y112M4，WKF127-Y11SKF，WKF127-Y132M4，WKF127-Y15SKF，WKF127-Y160M4，WKF127-Y18.5SKF，WKF127-Y180M4，WKF127-Y200M4，WKF127-Y225M4，WKF127-Y22SKF，WKF127-Y250M4，WKF127-Y280M4，WKF127-Y30SKF，WKF127-Y37SKF，WKF127-Y45SKF，WKF127-Y4SKF，WKF127-Y5.5SKF，WKF127-Y55SKF，WKF127-Y7.5SKF，WKF127-Y75SKF，WKF127-YB112M4，WKF127-YB132M4，WKF127-YB160M4，WKF127-YB180M4，WKF127-YB200M4，WKF127-YB225M4，WKF127-YB250M4，WKF127-YB280M4，WKF127-YDP112M4，WKF127-YDP132M4，WKF127-YDP160M4，WKF127-YDP180M4，WKF127-YDP200M4，WKF127-YDP225M4，WKF127-YDP250M4，WKF127-YDP280M4，WKF127-YE112M4，WKF127-YE132M4，WKF127-YE160M4，WKF127-YE180M4，WKF127-YE200M4，WKF127-YE225M4，WKF127-YE250M4，WKF127-YE280M4，WKF127-YEJ112M4，WKF127-YEJ132M4，WKF127-YEJ160M4，WKF127-YEJ180M4，WKF127-YEJ200M4，WKF127-YEJ225M4，WKF127-YEJ250M4，WKF127-YEJ280M4，WKF127-YEJB112M4，WKF127-YEJB132M4，WKF127-YEJB160M4，WKF127-YEJB180M4，WKF127-YEJB200M4，WKF127-YEJB225M4，WKF127-YEJB250M4，WKF127-YEJB280M4，WKF127-YP112M4，WKF127-YP132M4，WKF127-YP160M4，WKF127-YP180M4，WKF127-YP200M4，WKF127-YP225M4，WKF127-YP250M4，WKF127-YP280M4，WKF127-YPB112M4，WKF127-YPB132M4，WKF127-YPB160M4，WKF127-YPB180M4，WKF127-YPB200M4，WKF127-YPB225M4，WKF127-YPB250M4，WKF127-YPB280M4，WKF127-YPE112M4，WKF127-YPE132M4，WKF127-YPE160M4，WKF127-YPE180M4，WKF127-YPE200M4，WKF127-YPE225M4，WKF127-YPE250M4，WKF127-YPE280M4，WKF127-YS112M4，WKF127-YS132M4，WKF127-YS160M4，WKF127-YS180M4，WKF127-YS200M4，WKF127-YS225M4，WKF127-YS250M4，WKF127-YS280M4，WKF127-YVB112M4，WKF127-YVB132M4，WKF127-YVB160M4，WKF127-YVB180M4，WKF127-YVB200M4，WKF127-YVB225M4，WKF127-YVB250M4，WKF127-YVB280M4，WKF127-YVP112M4，WKF127-YVP132M4，WKF127-YVP160M4，WKF127-YVP180M4，WKF127-YVP200M4，WKF127-YVP225M4，WKF127-YVP250M4，WKF127-YVP280M4，WKF127-YVPEJ112M4，WKF127-YVPEJ132M4，WKF127-YVPEJ160M4，WKF127-YVPEJ180M4，WKF127-YVPEJ200M4，WKF127-YVPEJ225M4，WKF127-YVPEJ250M4，WKF127-YVPEJ280M4，AKF127-Y112M4，AKF127-Y11SKF，AKF127-Y132M4，AKF127-Y15SKF，AKF127-Y160M4，AKF127-Y18.5SKF，AKF127-Y180M4，AKF127-Y200M4，AKF127-Y225M4，AKF127-Y22SKF，AKF127-Y250M4，AKF127-Y280M4，AKF127-Y30SKF，AKF127-Y37SKF，AKF127-Y45SKF，AKF127-Y4SKF，AKF127-Y5.5SKF，AKF127-Y55SKF，AKF127-Y7.5SKF，AKF127-Y75SKF，AKF127-YB112M4，AKF127-YB132M4，AKF127-YB160M4，AKF127-YB180M4，AKF127-YB200M4，AKF127-YB225M4，AKF127-YB250M4，AKF127-YB280M4，AKF127-YDP112M4，AKF127-YDP132M4，AKF127-YDP160M4，AKF127-YDP180M4，AKF127-YDP200M4，AKF127-YDP225M4，AKF127-YDP250M4，AKF127-YDP280M4，AKF127-YE112M4，AKF127-YE132M4，AKF127-YE160M4，AKF127-YE180M4，AKF127-YE200M4，AKF127-YE225M4，AKF127-YE250M4，AKF127-YE280M4，AKF127-YEJ112M4，AKF127-YEJ132M4，AKF127-YEJ160M4，AKF127-YEJ180M4，AKF127-YEJ200M4，AKF127-YEJ225M4，AKF127-YEJ250M4，AKF127-YEJ280M4，AKF127-YEJB112M4，AKF127-YEJB132M4，AKF127-YEJB160M4，AKF127-YEJB180M4，AKF127-YEJB200M4，AKF127-YEJB225M4，AKF127-YEJB250M4，AKF127-YEJB280M4，AKF127-YP112M4，AKF127-YP132M4，AKF127-YP160M4，AKF127-YP180M4，AKF127-YP200M4，AKF127-YP225M4，AKF127-YP250M4，AKF127-YP280M4，AKF127-YPB112M4，AKF127-YPB132M4，AKF127-YPB160M4，AKF127-YPB180M4，AKF127-YPB200M4，AKF127-YPB225M4，AKF127-YPB250M4，AKF127-YPB280M4，AKF127-YPE112M4，AKF127-YPE132M4，AKF127-YPE160M4，AKF127-YPE180M4，AKF127-YPE200M4，AKF127-YPE225M4，AKF127-YPE250M4，AKF127-YPE280M4，AKF127-YS112M4，AKF127-YS132M4，AKF127-YS160M4，AKF127-YS180M4，AKF127-YS200M4，AKF127-YS225M4，AKF127-YS250M4，AKF127-YS280M4，AKF127-YVB112M4，AKF127-YVB132M4，AKF127-YVB160M4，AKF127-YVB180M4，AKF127-YVB200M4，AKF127-YVB225M4，AKF127-YVB250M4，AKF127-YVB280M4，AKF127-YVP112M4，AKF127-YVP132M4，AKF127-YVP160M4，AKF127-YVP180M4，AKF127-YVP200M4，AKF127-YVP225M4，AKF127-YVP250M4，AKF127-YVP280M4，AKF127-YVPEJ112M4，AKF127-YVPEJ132M4，AKF127-YVPEJ160M4，AKF127-YVPEJ180M4，AKF127-YVPEJ200M4，AKF127-YVPEJ225M4，AKF127-YVPEJ250M4，AKF127-YVPEJ280M4，NKF127-Y112M4，NKF127-Y11SKF，NKF127-Y132M4，NKF127-Y15SKF，NKF127-Y160M4，NKF127-Y18.5SKF，NKF127-Y180M4，NKF127-Y200M4，NKF127-Y225M4，NKF127-Y22SKF，NKF127-Y250M4，NKF127-Y280M4，NKF127-Y30SKF，NKF127-Y37SKF，NKF127-Y45SKF，NKF127-Y4SKF，NKF127-Y5.5SKF，NKF127-Y55SKF，NKF127-Y7.5SKF，NKF127-Y75SKF，NKF127-YB112M4，NKF127-YB132M4，NKF127-YB160M4，NKF127-YB180M4，NKF127-YB200M4，NKF127-YB225M4，NKF127-YB250M4，NKF127-YB280M4，NKF127-YDP112M4，NKF127-YDP132M4，NKF127-YDP160M4，NKF127-YDP180M4，NKF127-YDP200M4，NKF127-YDP225M4，NKF127-YDP250M4，NKF127-YDP280M4，NKF127-YE112M4，NKF127-YE132M4，NKF127-YE160M4，NKF127-YE180M4，NKF127-YE200M4，NKF127-YE225M4，NKF127-YE250M4，NKF127-YE280M4，NKF127-YEJ112M4，NKF127-YEJ132M4，NKF127-YEJ160M4，NKF127-YEJ180M4，NKF127-YEJ200M4，NKF127-YEJ225M4，NKF127-YEJ250M4，NKF127-YEJ280M4，NKF127-YEJB112M4，NKF127-YEJB132M4，NKF127-YEJB160M4，NKF127-YEJB180M4，NKF127-YEJB200M4，NKF127-YEJB225M4，NKF127-YEJB250M4，NKF127-YEJB280M4，NKF127-YP112M4，NKF127-YP132M4，NKF127-YP160M4，NKF127-YP180M4，NKF127-YP200M4，NKF127-YP225M4，NKF127-YP250M4，NKF127-YP280M4，NKF127-YPB112M4，NKF127-YPB132M4，NKF127-YPB160M4，NKF127-YPB180M4，NKF127-YPB200M4，NKF127-YPB225M4，NKF127-YPB250M4，NKF127-YPB280M4，NKF127-YPE112M4，NKF127-YPE132M4，NKF127-YPE160M4，NKF127-YPE180M4，NKF127-YPE200M4，NKF127-YPE225M4，NKF127-YPE250M4，NKF127-YPE280M4，NKF127-YS112M4，NKF127-YS132M4，NKF127-YS160M4，NKF127-YS180M4，NKF127-YS200M4，NKF127-YS225M4，NKF127-YS250M4，NKF127-YS280M4，NKF127-YVB112M4，NKF127-YVB132M4，NKF127-YVB160M4，NKF127-YVB180M4，NKF127-YVB200M4，NKF127-YVB225M4，NKF127-YVB250M4，NKF127-YVB280M4，NKF127-YVP112M4，NKF127-YVP132M4，NKF127-YVP160M4，NKF127-YVP180M4，NKF127-YVP200M4，NKF127-YVP225M4，NKF127-YVP250M4，NKF127-YVP280M4，NKF127-YVPEJ112M4，NKF127-YVPEJ132M4，NKF127-YVPEJ160M4，NKF127-YVPEJ180M4，NKF127-YVPEJ200M4，NKF127-YVPEJ225M4，NKF127-YVPEJ250M4，NKF127-YVPEJ280M4，SKF127-Y112M4，SKF127-Y11SKF，SKF127-Y132M4，SKF127-Y15SKF，SKF127-Y160M4，SKF127-Y18.5SKF，SKF127-Y180M4，SKF127-Y200M4，SKF127-Y225M4，SKF127-Y22SKF，SKF127-Y250M4，SKF127-Y280M4，SKF127-Y30SKF，SKF127-Y37SKF，SKF127-Y45SKF，SKF127-Y4SKF，SKF127-Y5.5SKF，SKF127-Y55SKF，SKF127-Y7.5SKF，SKF127-Y75SKF，SKF127-YB112M4，SKF127-YB132M4，SKF127-YB160M4，SKF127-YB180M4，SKF127-YB200M4，SKF127-YB225M4，SKF127-YB250M4，SKF127-YB280M4，SKF127-YDP112M4，SKF127-YDP132M4，SKF127-YDP160M4，SKF127-YDP180M4，SKF127-YDP200M4，SKF127-YDP225M4，SKF127-YDP250M4，SKF127-YDP280M4，SKF127-YE112M4，SKF127-YE132M4，SKF127-YE160M4，SKF127-YE180M4，SKF127-YE200M4，SKF127-YE225M4，SKF127-YE250M4，SKF127-YE280M4，SKF127-YEJ112M4，SKF127-YEJ132M4，SKF127-YEJ160M4，SKF127-YEJ180M4，SKF127-YEJ200M4，SKF127-YEJ225M4，SKF127-YEJ250M4，SKF127-YEJ280M4，SKF127-YEJB112M4，SKF127-YEJB132M4，SKF127-YEJB160M4，SKF127-YEJB180M4，SKF127-YEJB200M4，SKF127-YEJB225M4，SKF127-YEJB250M4，SKF127-YEJB280M4，SKF127-YP112M4，SKF127-YP132M4，SKF127-YP160M4，SKF127-YP180M4，SKF127-YP200M4，SKF127-YP225M4，SKF127-YP250M4，SKF127-YP280M4，SKF127-YPB112M4，SKF127-YPB132M4，SKF127-YPB160M4，SKF127-YPB180M4，SKF127-YPB200M4，SKF127-YPB225M4，SKF127-YPB250M4，SKF127-YPB280M4，SKF127-YPE112M4，SKF127-YPE132M4，SKF127-YPE160M4，SKF127-YPE180M4，SKF127-YPE200M4，SKF127-YPE225M4，SKF127-YPE250M4，SKF127-YPE280M4，SKF127-YS112M4，SKF127-YS132M4，SKF127-YS160M4，SKF127-YS180M4，SKF127-YS200M4，SKF127-YS225M4，SKF127-YS250M4，SKF127-YS280M4，SKF127-YVB112M4，SKF127-YVB132M4，SKF127-YVB160M4，SKF127-YVB180M4，SKF127-YVB200M4，SKF127-YVB225M4，SKF127-YVB250M4，SKF127-YVB280M4，SKF127-YVP112M4，SKF127-YVP132M4，SKF127-YVP160M4，SKF127-YVP180M4，SKF127-YVP200M4，SKF127-YVP225M4，SKF127-YVP250M4，SKF127-YVP280M4，SKF127-YVPEJ112M4，SKF127-YVPEJ132M4，SKF127-YVPEJ160M4，SKF127-YVPEJ180M4，SKF127-YVPEJ200M4，SKF127-YVPEJ225M4，SKF127-YVPEJ250M4，SKF127-YVPEJ280M4，GKF129-Y112M4，GKF129-Y11SKF，GKF129-Y132M4，GKF129-Y15SKF，GKF129-Y160M4，GKF129-Y18.5SKF，GKF129-Y180M4，GKF129-Y200M4，GKF129-Y225M4，GKF129-Y22SKF，GKF129-Y250M4，GKF129-Y280M4，GKF129-Y30SKF，GKF129-Y37SKF，GKF129-Y45SKF，GKF129-Y4SKF，GKF129-Y5.5SKF，GKF129-Y55SKF，GKF129-Y7.5SKF，GKF129-Y75SKF，GKF129-YB112M4，GKF129-YB132M4，GKF129-YB160M4，GKF129-YB180M4，GKF129-YB200M4，GKF129-YB225M4，GKF129-YB250M4，GKF129-YB280M4，GKF129-YDP112M4，GKF129-YDP132M4，GKF129-YDP160M4，GKF129-YDP180M4，GKF129-YDP200M4，GKF129-YDP225M4，GKF129-YDP250M4，GKF129-YDP280M4，GKF129-YE112M4，GKF129-YE132M4，GKF129-YE160M4，GKF129-YE180M4，GKF129-YE200M4，GKF129-YE225M4，GKF129-YE250M4，GKF129-YE280M4，GKF129-YEJ112M4，GKF129-YEJ132M4，GKF129-YEJ160M4，GKF129-YEJ180M4，GKF129-YEJ200M4，GKF129-YEJ225M4，GKF129-YEJ250M4，GKF129-YEJ280M4，GKF129-YEJB112M4，GKF129-YEJB132M4，GKF129-YEJB160M4，GKF129-YEJB180M4，GKF129-YEJB200M4，GKF129-YEJB225M4，GKF129-YEJB250M4，GKF129-YEJB280M4，GKF129-YP112M4，GKF129-YP132M4，GKF129-YP160M4，GKF129-YP180M4，GKF129-YP200M4，GKF129-YP225M4，GKF129-YP250M4，GKF129-YP280M4，GKF129-YPB112M4，GKF129-YPB132M4，GKF129-YPB160M4，GKF129-YPB180M4，GKF129-YPB200M4，GKF129-YPB225M4，GKF129-YPB250M4，GKF129-YPB280M4，GKF129-YPE112M4，GKF129-YPE132M4，GKF129-YPE160M4，GKF129-YPE180M4，GKF129-YPE200M4，GKF129-YPE225M4，GKF129-YPE250M4，GKF129-YPE280M4，GKF129-YS112M4，GKF129-YS132M4，GKF129-YS160M4，GKF129-YS180M4，GKF129-YS200M4，GKF129-YS225M4，GKF129-YS250M4，GKF129-YS280M4，GKF129-YVB112M4，GKF129-YVB132M4，GKF129-YVB160M4，GKF129-YVB180M4，GKF129-YVB200M4，GKF129-YVB225M4，GKF129-YVB250M4，GKF129-YVB280M4，GKF129-YVP112M4，GKF129-YVP132M4，GKF129-YVP160M4，GKF129-YVP180M4，GKF129-YVP200M4，GKF129-YVP225M4，GKF129-YVP250M4，GKF129-YVP280M4，GKF129-YVPEJ112M4，GKF129-YVPEJ132M4，GKF129-YVPEJ160M4，GKF129-YVPEJ180M4，GKF129-YVPEJ200M4，GKF129-YVPEJ225M4，GKF129-YVPEJ250M4，GKF129-YVPEJ280M4。

KF129減速機生產廠家展示：看廠請聯系微信13827261050，獲取位置，需提前一天預約http://www.0668room.com/product/list-kfxiliejiansuji-cn.html

推薦類似型號：K129減速機
