KF89減速機銘牌參數說明解讀含義：有關型號描述的詳細情況及其他信息可以參閱本業附件下載中的K89減速機選型樣本。

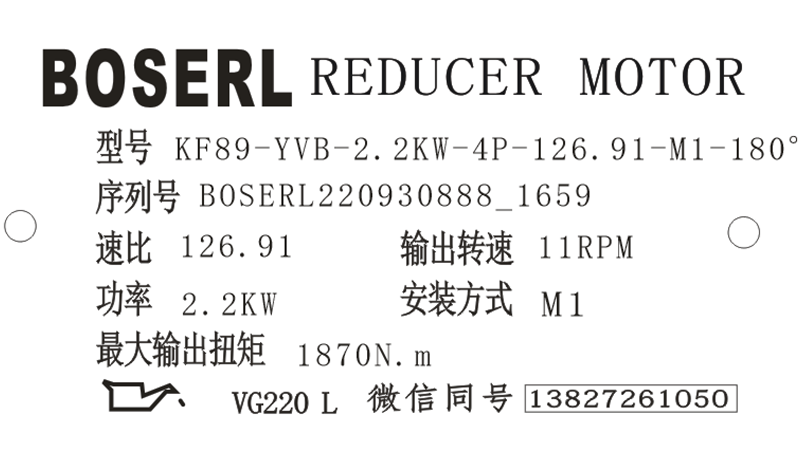

KF89-YVB-2.2KW-4P-126.91-M1-180°

KF：系列代號

89：減速機規格代號

YVB：電機

2.2KW：電機功率

4P：電機級數

126.91：減速機傳動比

M1：減速機安裝位置

180°：接線盒位置

KF89減速機潤滑油型號：

KF89減速機某些安裝位置發生攪油損失的機會較高。出現下列情況時請與BOSERL公司進行聯系：若無特殊規定，BOSERL公司發貨時會根據KF89減速機的安裝位置給驅動裝置加潤滑油，因此應在訂貨時指定安裝位置（M1…M6，參見“KF89減速機說明書中的安裝位置與訂貨說明”章節）。若之后對安裝位置需要改動，則加潤滑油必須與安裝位置相符（潤滑油加注量）。直角減速機

KF89減速機潤滑油加注量，具體值根據級數與傳動比的不同而各異。請您在加注潤滑油時一定注意油位螺栓所指示的精確油量。本頁附件中的KF89減速機選型樣本中列出了安裝位置從M1到M6KF89減速機相應的潤滑油加注標準，請自行下載查看。

KF89減速機特殊應用場合必須使用特殊潤滑油，比如要求長使用壽命潤滑油。若需要可提供用于食品行業和生物降解潤滑油。齒輪減速電機

KF89減速機推薦使用的潤滑油，其等級和粘度指標見下表：

KF89減速機使用說明：

KF89減速機警告說明：由于KF89減速機發熱或KF89減速機油溫過高可能引起燙傷；對KF89減速機進行操作前先冷卻；擰出油位檢查螺栓和放油螺栓時要格外小心。

KF89減速機注意事項：若未注入正確的KF89減速機油則可能造成潤滑油性能失效，可能造成財產損失；合成潤滑油不可能相互混用并不可與礦物潤滑油混用；礦物油用作標準的潤滑油，不能用于特殊行業。

KF89減速機提示事項：油位檢查螺栓、放油螺栓、以及透氣閥的位置在安裝位置上，要參見KF89減速機說明書安裝位置章節中的內容。

KF89減速機的螺母：立式安裝KF89減速機輸出法蘭螺母規格M16；KF89減速機螺母/螺母擰緊扭矩強度等級10.9。伺服電機減速機

KF89減速機危險使用說明：驅動裝置意外啟動會造成擠傷，可能造成重傷或死亡；開始工作前，應先斷開減速電機的電源并且采取措施防止意外接通！

KF89減速機型號：
