R109R79減速機銘牌參數說明解讀含義：有關型號描述的詳細情況及其他信息可以參閱本業附件下載中的R109R79減速機選型樣本。

R109R79-YVP1.5KW-4P-323-M6-0°

R/R：系列代號

109/79：減速機規格代號

Y：電機

VP：變頻電機

1.5KW：電機功率

4P：電機級數

323：減速機傳動比

M6：減速機安裝位置

0°：接線盒位置

R109R79減速機潤滑油檢查：

通過安裝蓋檢查油位：對于無油位孔的減速器可以通過打開安裝蓋來檢查油位。請按以下步驟進行操作：按照下列安裝位置放置減速器以便安裝蓋位于頂部；松開安全蓋2的螺栓1，并卸掉安裝蓋2及蓋上的密封圈3（見下圖）；確定油位與減速器箱體密封面的垂直間距“X”（見下圖）。齒輪減速電機

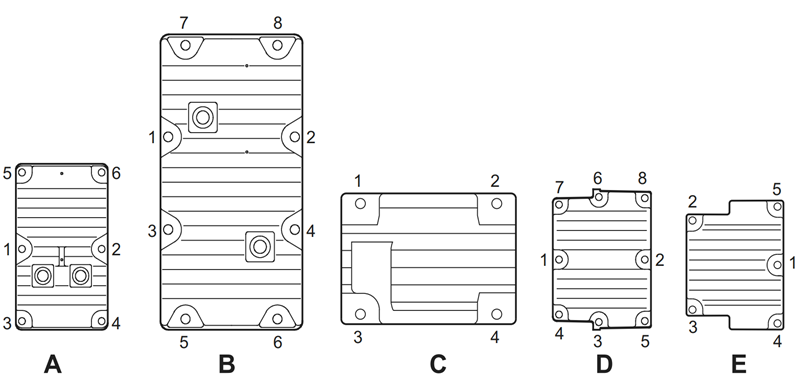

R109R79減速機油位檢查完畢后密封R109R79減速機：重新裝上安裝蓋的密封圈；注意，密封面要保持清潔、干燥；裝上安裝蓋；根據下表中的標稱擰緊扭矩按照圖中標明的順序由內向外依次擰緊蓋上的螺栓；重復這一步驟多次，直至螺栓完全擰緊；只能采用氣動扳手或力矩扳手，避免安裝時對蓋板產生破壞，避免用力過猛或使用強沖擊的工具。

R109R79減速機安裝和電機安裝位置的調整：

均勻調整螺母將電機安裝平臺固定到需要的位置。如要將R109R79減速機的位置調整到最低，則在必要情況下可以拆除吊裝螺栓/吊耳；對于損傷的漆面部位進行修補。R系列減速機

將電機與電機安裝平臺對準(軸端不許對齊)并固定。

將輸入端部件安裝于輸入端的軸端面和電機軸，將輸入部件、軸端與電機軸的位置相互校正；如果必要可以對電機位置進行再次校正。

裝上傳動部件（V型皮帶、鏈條...）并均勻調節電機安裝平臺使其預張緊。期間不得用力過猛，否則將會擰壞電機安裝平臺和螺桿。

擰緊非調整螺母以固定螺桿。臥式減速機

R109R79減速機型號：

YQR107R77-Y100M4，YQR107R77-Y112M4，YQR107R77-Y63M4，YQR107R77-Y71M4，YQR107R77-Y80M4，YQR107R77-Y90M4，YQR107RF77-Y0.12KW，YQR107RF77-Y0.18KW，YQR107RF77-Y0.25KW，YQR107RF77-Y0.37KW，YQR107RF77-Y0.55KW，YQR107RF77-Y0.75KW，YQR107RF77-Y1.1KW，YQR107RF77-Y1.5KW，YQR107RF77-Y100M4，YQR107RF77-Y112M4，YQR107RF77-Y2.2KW，YQR107RF77-Y3KW，YQR107RF77-Y4KW，YQR107RF77-Y63M4，YQR107RF77-Y71M4，YQR107RF77-Y80M4，YQR107RF77-Y90M4，YQR107RF77-YB100L4，YQR107RF77-YB112M4，YQR107RF77-YB63M4，YQR107RF77-YB71M4，YQR107RF77-YB80M4，YQR107RF77-YB90S4，YQR107RF77-YDP100L4，YQR107RF77-YDP112M4，YQR107RF77-YDP63M4，YQR107RF77-YDP71M4，YQR107RF77-YDP80M4，YQR107RF77-YDP90S4，YQR107RF77-YE100L4，YQR107RF77-YE112M4，YQR107RF77-YE63M4，YQR107RF77-YE71M4，YQR107RF77-YE80M4，YQR107RF77-YE90S4，YQR107RF77-YEJ100L4，YQR107RF77-YEJ112M4，YQR107RF77-YEJ63M4，YQR107RF77-YEJ71M4，YQR107RF77-YEJ80M4，YQR107RF77-YEJ90S4，YQR107RF77-YEJB100L4，YQR107RF77-YEJB112M4，YQR107RF77-YEJB63M4，YQR107RF77-YEJB71M4，YQR107RF77-YEJB80M4，YQR107RF77-YEJB90S4，YQR107RF77-YP100L4，YQR107RF77-YP112M4，YQR107RF77-YP63M4，YQR107RF77-YP71M4，YQR107RF77-YP80M4，YQR107RF77-YP90S4，YQR107RF77-YPB100L4，YQR107RF77-YPB112M4，YQR107RF77-YPB63M4，YQR107RF77-YPB71M4，YQR107RF77-YPB80M4，YQR107RF77-YPB90S4，YQR107RF77-YPE100L4，YQR107RF77-YPE112M4，YQR107RF77-YPE63M4，YQR107RF77-YPE71M4，YQR107RF77-YPE80M4，YQR107RF77-YPE90S4，YQR107RF77-YS100L4，YQR107RF77-YS112M4，YQR107RF77-YS63M4，YQR107RF77-YS71M4，YQR107RF77-YS80M4，YQR107RF77-YS90S4，YQR107RF77-YVB100L4，YQR107RF77-YVB112M4，YQR107RF77-YVB63M4，YQR107RF77-YVB71M4，YQR107RF77-YVB80M4，YQR107RF77-YVB90S4，YQR107RF77-YVP100L4，YQR107RF77-YVP112M4，YQR107RF77-YVP63M4，YQR107RF77-YVP71M4，YQR107RF77-YVP80M4，YQR107RF77-YVP90S4，YQR107RF77-YVPEJ100L4，YQR107RF77-YVPEJ112M4，YQR107RF77-YVPEJ63M4，YQR107RF77-YVPEJ71M4，YQR107RF77-YVPEJ80M4，YQR107RF77-YVPEJ90S4，AR107R77-Y100M4，AR107R77-Y112M4，AR107R77-Y63M4，AR107R77-Y71M4，AR107R77-Y80M4，AR107R77-Y90M4，AR107RF77-Y0.12KW，AR107RF77-Y0.18KW，AR107RF77-Y0.25KW，AR107RF77-Y0.37KW，AR107RF77-Y0.55KW，AR107RF77-Y0.75KW，AR107RF77-Y1.1KW，AR107RF77-Y1.5KW，AR107RF77-Y100M4，AR107RF77-Y112M4，AR107RF77-Y2.2KW，AR107RF77-Y3KW，AR107RF77-Y4KW，AR107RF77-Y63M4，AR107RF77-Y71M4，AR107RF77-Y80M4，AR107RF77-Y90M4，AR107RF77-YB100L4，AR107RF77-YB112M4，AR107RF77-YB63M4，AR107RF77-YB71M4，AR107RF77-YB80M4，AR107RF77-YB90S4，AR107RF77-YDP100L4，AR107RF77-YDP112M4，AR107RF77-YDP63M4，AR107RF77-YDP71M4，AR107RF77-YDP80M4，AR107RF77-YDP90S4，AR107RF77-YE100L4，AR107RF77-YE112M4，AR107RF77-YE63M4，AR107RF77-YE71M4，AR107RF77-YE80M4，AR107RF77-YE90S4，AR107RF77-YEJ100L4，AR107RF77-YEJ112M4，AR107RF77-YEJ63M4，AR107RF77-YEJ71M4，AR107RF77-YEJ80M4，AR107RF77-YEJ90S4，AR107RF77-YEJB100L4，AR107RF77-YEJB112M4，AR107RF77-YEJB63M4，AR107RF77-YEJB71M4，AR107RF77-YEJB80M4，AR107RF77-YEJB90S4，AR107RF77-YP100L4，AR107RF77-YP112M4，AR107RF77-YP63M4，AR107RF77-YP71M4，AR107RF77-YP80M4，AR107RF77-YP90S4，AR107RF77-YPB100L4，AR107RF77-YPB112M4，AR107RF77-YPB63M4，AR107RF77-YPB71M4，AR107RF77-YPB80M4，AR107RF77-YPB90S4，AR107RF77-YPE100L4，AR107RF77-YPE112M4，AR107RF77-YPE63M4，AR107RF77-YPE71M4，AR107RF77-YPE80M4，AR107RF77-YPE90S4，AR107RF77-YS100L4，AR107RF77-YS112M4，AR107RF77-YS63M4，AR107RF77-YS71M4，AR107RF77-YS80M4，AR107RF77-YS90S4，AR107RF77-YVB100L4，AR107RF77-YVB112M4，AR107RF77-YVB63M4，AR107RF77-YVB71M4，AR107RF77-YVB80M4，AR107RF77-YVB90S4，AR107RF77-YVP100L4，AR107RF77-YVP112M4，AR107RF77-YVP63M4，AR107RF77-YVP71M4，AR107RF77-YVP80M4，AR107RF77-YVP90S4，AR107RF77-YVPEJ100L4，AR107RF77-YVPEJ112M4，AR107RF77-YVPEJ63M4，AR107RF77-YVPEJ71M4，AR107RF77-YVPEJ80M4，AR107RF77-YVPEJ90S4，SR107R77-Y100M4，SR107R77-Y112M4，SR107R77-Y63M4，SR107R77-Y71M4，SR107R77-Y80M4，SR107R77-Y90M4，SR107RF77-Y0.12KW，SR107RF77-Y0.18KW，SR107RF77-Y0.25KW，SR107RF77-Y0.37KW，SR107RF77-Y0.55KW，SR107RF77-Y0.75KW，SR107RF77-Y1.1KW，SR107RF77-Y1.5KW，SR107RF77-Y100M4，SR107RF77-Y112M4，SR107RF77-Y2.2KW，SR107RF77-Y3KW，SR107RF77-Y4KW，SR107RF77-Y63M4，SR107RF77-Y71M4，SR107RF77-Y80M4，SR107RF77-Y90M4，SR107RF77-YB100L4，SR107RF77-YB112M4，SR107RF77-YB63M4，SR107RF77-YB71M4，SR107RF77-YB80M4，SR107RF77-YB90S4，SR107RF77-YDP100L4，SR107RF77-YDP112M4，SR107RF77-YDP63M4，SR107RF77-YDP71M4，SR107RF77-YDP80M4，SR107RF77-YDP90S4，SR107RF77-YE100L4，SR107RF77-YE112M4，SR107RF77-YE63M4，SR107RF77-YE71M4，SR107RF77-YE80M4，SR107RF77-YE90S4，SR107RF77-YEJ100L4，SR107RF77-YEJ112M4，SR107RF77-YEJ63M4，SR107RF77-YEJ71M4，SR107RF77-YEJ80M4，SR107RF77-YEJ90S4，SR107RF77-YEJB100L4，SR107RF77-YEJB112M4，SR107RF77-YEJB63M4，SR107RF77-YEJB71M4，SR107RF77-YEJB80M4，SR107RF77-YEJB90S4，SR107RF77-YP100L4，SR107RF77-YP112M4，SR107RF77-YP63M4，SR107RF77-YP71M4，SR107RF77-YP80M4，SR107RF77-YP90S4，SR107RF77-YPB100L4，SR107RF77-YPB112M4，SR107RF77-YPB63M4，SR107RF77-YPB71M4，SR107RF77-YPB80M4，SR107RF77-YPB90S4，SR107RF77-YPE100L4，SR107RF77-YPE112M4，SR107RF77-YPE63M4，SR107RF77-YPE71M4，SR107RF77-YPE80M4，SR107RF77-YPE90S4，SR107RF77-YS100L4，SR107RF77-YS112M4，SR107RF77-YS63M4，SR107RF77-YS71M4，SR107RF77-YS80M4，SR107RF77-YS90S4，SR107RF77-YVB100L4，SR107RF77-YVB112M4，SR107RF77-YVB63M4，SR107RF77-YVB71M4，SR107RF77-YVB80M4，SR107RF77-YVB90S4，SR107RF77-YVP100L4，SR107RF77-YVP112M4，SR107RF77-YVP63M4，SR107RF77-YVP71M4，SR107RF77-YVP80M4，SR107RF77-YVP90S4，SR107RF77-YVPEJ100L4，SR107RF77-YVPEJ112M4，SR107RF77-YVPEJ63M4，SR107RF77-YVPEJ71M4，SR107RF77-YVPEJ80M4，SR107RF77-YVPEJ90S4，XDR107R77-Y100M4，XDR107R77-Y112M4，XDR107R77-Y63M4，XDR107R77-Y71M4，XDR107R77-Y80M4，XDR107R77-Y90M4，XDR107RF77-Y0.12KW，XDR107RF77-Y0.18KW，XDR107RF77-Y0.25KW，XDR107RF77-Y0.37KW，XDR107RF77-Y0.55KW，XDR107RF77-Y0.75KW，XDR107RF77-Y1.1KW，XDR107RF77-Y1.5KW，XDR107RF77-Y100M4，XDR107RF77-Y112M4，XDR107RF77-Y2.2KW，XDR107RF77-Y3KW，XDR107RF77-Y4KW，XDR107RF77-Y63M4，XDR107RF77-Y71M4，XDR107RF77-Y80M4，XDR107RF77-Y90M4，XDR107RF77-YB100L4，XDR107RF77-YB112M4，XDR107RF77-YB63M4，XDR107RF77-YB71M4，XDR107RF77-YB80M4，XDR107RF77-YB90S4，XDR107RF77-YDP100L4，XDR107RF77-YDP112M4，XDR107RF77-YDP63M4，XDR107RF77-YDP71M4，XDR107RF77-YDP80M4，XDR107RF77-YDP90S4，XDR107RF77-YE100L4，XDR107RF77-YE112M4，XDR107RF77-YE63M4，XDR107RF77-YE71M4，XDR107RF77-YE80M4，XDR107RF77-YE90S4，XDR107RF77-YEJ100L4，XDR107RF77-YEJ112M4，XDR107RF77-YEJ63M4，XDR107RF77-YEJ71M4，XDR107RF77-YEJ80M4，XDR107RF77-YEJ90S4，XDR107RF77-YEJB100L4，XDR107RF77-YEJB112M4，XDR107RF77-YEJB63M4，XDR107RF77-YEJB71M4，XDR107RF77-YEJB80M4，XDR107RF77-YEJB90S4，XDR107RF77-YP100L4，XDR107RF77-YP112M4，XDR107RF77-YP63M4，XDR107RF77-YP71M4，XDR107RF77-YP80M4，XDR107RF77-YP90S4，XDR107RF77-YPB100L4，XDR107RF77-YPB112M4，XDR107RF77-YPB63M4，XDR107RF77-YPB71M4，XDR107RF77-YPB80M4，XDR107RF77-YPB90S4，XDR107RF77-YPE100L4，XDR107RF77-YPE112M4，XDR107RF77-YPE63M4，XDR107RF77-YPE71M4，XDR107RF77-YPE80M4，XDR107RF77-YPE90S4，XDR107RF77-YS100L4，XDR107RF77-YS112M4，XDR107RF77-YS63M4，XDR107RF77-YS71M4，XDR107RF77-YS80M4，XDR107RF77-YS90S4，XDR107RF77-YVB100L4，XDR107RF77-YVB112M4，XDR107RF77-YVB63M4，XDR107RF77-YVB71M4，XDR107RF77-YVB80M4，XDR107RF77-YVB90S4，XDR107RF77-YVP100L4，XDR107RF77-YVP112M4，XDR107RF77-YVP63M4，XDR107RF77-YVP71M4，XDR107RF77-YVP80M4，XDR107RF77-YVP90S4，XDR107RF77-YVPEJ100L4，XDR107RF77-YVPEJ112M4，XDR107RF77-YVPEJ63M4，XDR107RF77-YVPEJ71M4，XDR107RF77-YVPEJ80M4，XDR107RF77-YVPEJ90S4，WR107R77-Y100M4，WR107R77-Y112M4，WR107R77-Y63M4，WR107R77-Y71M4，WR107R77-Y80M4，WR107R77-Y90M4，WR107RF77-Y0.12KW，WR107RF77-Y0.18KW，WR107RF77-Y0.25KW，WR107RF77-Y0.37KW，WR107RF77-Y0.55KW，WR107RF77-Y0.75KW，WR107RF77-Y1.1KW，WR107RF77-Y1.5KW，WR107RF77-Y100M4，WR107RF77-Y112M4，WR107RF77-Y2.2KW，WR107RF77-Y3KW，WR107RF77-Y4KW，WR107RF77-Y63M4，WR107RF77-Y71M4，WR107RF77-Y80M4，WR107RF77-Y90M4，WR107RF77-YB100L4，WR107RF77-YB112M4，WR107RF77-YB63M4，WR107RF77-YB71M4，WR107RF77-YB80M4，WR107RF77-YB90S4，WR107RF77-YDP100L4，WR107RF77-YDP112M4，WR107RF77-YDP63M4，WR107RF77-YDP71M4，WR107RF77-YDP80M4，WR107RF77-YDP90S4，WR107RF77-YE100L4，WR107RF77-YE112M4，WR107RF77-YE63M4，WR107RF77-YE71M4，WR107RF77-YE80M4，WR107RF77-YE90S4，WR107RF77-YEJ100L4，WR107RF77-YEJ112M4，WR107RF77-YEJ63M4，WR107RF77-YEJ71M4，WR107RF77-YEJ80M4，WR107RF77-YEJ90S4，WR107RF77-YEJB100L4，WR107RF77-YEJB112M4，WR107RF77-YEJB63M4，WR107RF77-YEJB71M4，WR107RF77-YEJB80M4，WR107RF77-YEJB90S4，WR107RF77-YP100L4，WR107RF77-YP112M4，WR107RF77-YP63M4，WR107RF77-YP71M4，WR107RF77-YP80M4，WR107RF77-YP90S4，WR107RF77-YPB100L4，WR107RF77-YPB112M4，WR107RF77-YPB63M4，WR107RF77-YPB71M4，WR107RF77-YPB80M4，WR107RF77-YPB90S4，WR107RF77-YPE100L4，WR107RF77-YPE112M4，WR107RF77-YPE63M4，WR107RF77-YPE71M4，WR107RF77-YPE80M4，WR107RF77-YPE90S4，WR107RF77-YS100L4，WR107RF77-YS112M4，WR107RF77-YS63M4，WR107RF77-YS71M4，WR107RF77-YS80M4，WR107RF77-YS90S4，WR107RF77-YVB100L4，WR107RF77-YVB112M4，WR107RF77-YVB63M4，WR107RF77-YVB71M4，WR107RF77-YVB80M4，WR107RF77-YVB90S4，WR107RF77-YVP100L4，WR107RF77-YVP112M4，WR107RF77-YVP63M4，WR107RF77-YVP71M4，WR107RF77-YVP80M4，WR107RF77-YVP90S4，WR107RF77-YVPEJ100L4，WR107RF77-YVPEJ112M4，WR107RF77-YVPEJ63M4，WR107RF77-YVPEJ71M4，WR107RF77-YVPEJ80M4，WR107RF77-YVPEJ90S4，JCR107R77-Y100M4，JCR107R77-Y112M4，JCR107R77-Y63M4，JCR107R77-Y71M4，JCR107R77-Y80M4，JCR107R77-Y90M4，JCR107RF77-Y0.12KW，JCR107RF77-Y0.18KW，JCR107RF77-Y0.25KW，JCR107RF77-Y0.37KW，JCR107RF77-Y0.55KW，JCR107RF77-Y0.75KW，JCR107RF77-Y1.1KW，JCR107RF77-Y1.5KW，JCR107RF77-Y100M4，JCR107RF77-Y112M4，JCR107RF77-Y2.2KW，JCR107RF77-Y3KW，JCR107RF77-Y4KW，JCR107RF77-Y63M4，JCR107RF77-Y71M4，JCR107RF77-Y80M4，JCR107RF77-Y90M4，JCR107RF77-YB100L4，JCR107RF77-YB112M4，JCR107RF77-YB63M4，JCR107RF77-YB71M4，JCR107RF77-YB80M4，JCR107RF77-YB90S4，JCR107RF77-YDP100L4，JCR107RF77-YDP112M4，JCR107RF77-YDP63M4，JCR107RF77-YDP71M4，JCR107RF77-YDP80M4，JCR107RF77-YDP90S4，JCR107RF77-YE100L4，JCR107RF77-YE112M4，JCR107RF77-YE63M4，JCR107RF77-YE71M4，JCR107RF77-YE80M4，JCR107RF77-YE90S4，JCR107RF77-YEJ100L4，JCR107RF77-YEJ112M4，JCR107RF77-YEJ63M4，JCR107RF77-YEJ71M4，JCR107RF77-YEJ80M4，JCR107RF77-YEJ90S4，JCR107RF77-YEJB100L4，JCR107RF77-YEJB112M4，JCR107RF77-YEJB63M4，JCR107RF77-YEJB71M4，JCR107RF77-YEJB80M4，JCR107RF77-YEJB90S4，JCR107RF77-YP100L4，JCR107RF77-YP112M4，JCR107RF77-YP63M4，JCR107RF77-YP71M4，JCR107RF77-YP80M4，JCR107RF77-YP90S4，JCR107RF77-YPB100L4，JCR107RF77-YPB112M4，JCR107RF77-YPB63M4，JCR107RF77-YPB71M4，JCR107RF77-YPB80M4，JCR107RF77-YPB90S4，JCR107RF77-YPE100L4，JCR107RF77-YPE112M4，JCR107RF77-YPE63M4，JCR107RF77-YPE71M4，JCR107RF77-YPE80M4，JCR107RF77-YPE90S4，JCR107RF77-YS100L4，JCR107RF77-YS112M4，JCR107RF77-YS63M4，JCR107RF77-YS71M4，JCR107RF77-YS80M4，JCR107RF77-YS90S4，JCR107RF77-YVB100L4，JCR107RF77-YVB112M4，JCR107RF77-YVB63M4，JCR107RF77-YVB71M4，JCR107RF77-YVB80M4，JCR107RF77-YVB90S4，JCR107RF77-YVP100L4，JCR107RF77-YVP112M4，JCR107RF77-YVP63M4，JCR107RF77-YVP71M4，JCR107RF77-YVP80M4，JCR107RF77-YVP90S4，JCR107RF77-YVPEJ100L4，JCR107RF77-YVPEJ112M4，JCR107RF77-YVPEJ63M4，JCR107RF77-YVPEJ71M4，JCR107RF77-YVPEJ80M4，JCR107RF77-YVPEJ90S4，NR107R77-Y100M4，NR107R77-Y112M4，NR107R77-Y63M4，NR107R77-Y71M4，NR107R77-Y80M4，NR107R77-Y90M4，NR107RF77-Y0.12KW，NR107RF77-Y0.18KW，NR107RF77-Y0.25KW，NR107RF77-Y0.37KW，NR107RF77-Y0.55KW，NR107RF77-Y0.75KW，NR107RF77-Y1.1KW，NR107RF77-Y1.5KW，NR107RF77-Y100M4，NR107RF77-Y112M4，NR107RF77-Y2.2KW，NR107RF77-Y3KW，NR107RF77-Y4KW，NR107RF77-Y63M4，NR107RF77-Y71M4，NR107RF77-Y80M4，NR107RF77-Y90M4，NR107RF77-YB100L4，NR107RF77-YB112M4，NR107RF77-YB63M4，NR107RF77-YB71M4，NR107RF77-YB80M4，NR107RF77-YB90S4，NR107RF77-YDP100L4，NR107RF77-YDP112M4，NR107RF77-YDP63M4，NR107RF77-YDP71M4，NR107RF77-YDP80M4，NR107RF77-YDP90S4，NR107RF77-YE100L4，NR107RF77-YE112M4，NR107RF77-YE63M4，NR107RF77-YE71M4，NR107RF77-YE80M4，NR107RF77-YE90S4，NR107RF77-YEJ100L4，NR107RF77-YEJ112M4，NR107RF77-YEJ63M4，NR107RF77-YEJ71M4，NR107RF77-YEJ80M4，NR107RF77-YEJ90S4，NR107RF77-YEJB100L4，NR107RF77-YEJB112M4，NR107RF77-YEJB63M4，NR107RF77-YEJB71M4，NR107RF77-YEJB80M4，NR107RF77-YEJB90S4，NR107RF77-YP100L4，NR107RF77-YP112M4，NR107RF77-YP63M4，NR107RF77-YP71M4，NR107RF77-YP80M4，NR107RF77-YP90S4，NR107RF77-YPB100L4，NR107RF77-YPB112M4，NR107RF77-YPB63M4，NR107RF77-YPB71M4，NR107RF77-YPB80M4，NR107RF77-YPB90S4，NR107RF77-YPE100L4，NR107RF77-YPE112M4，NR107RF77-YPE63M4，NR107RF77-YPE71M4，NR107RF77-YPE80M4，NR107RF77-YPE90S4，NR107RF77-YS100L4，NR107RF77-YS112M4，NR107RF77-YS63M4，NR107RF77-YS71M4，NR107RF77-YS80M4，NR107RF77-YS90S4，NR107RF77-YVB100L4，NR107RF77-YVB112M4，NR107RF77-YVB63M4，NR107RF77-YVB71M4，NR107RF77-YVB80M4，NR107RF77-YVB90S4，NR107RF77-YVP100L4，NR107RF77-YVP112M4，NR107RF77-YVP63M4，NR107RF77-YVP71M4，NR107RF77-YVP80M4，NR107RF77-YVP90S4，NR107RF77-YVPEJ100L4，NR107RF77-YVPEJ112M4，NR107RF77-YVPEJ63M4，NR107RF77-YVPEJ71M4，NR107RF77-YVPEJ80M4，NR107RF77-YVPEJ90S4，RW107RW77-Y100M4，RW107RW77-Y112M4，RW107RW77-Y63M4，RW107RW77-Y71M4，RW107RW77-Y80M4，RW107RW77-Y90M4，RW107RWF77-Y0.12KW，RW107RWF77-Y0.18KW，RW107RWF77-Y0.25KW，RW107RWF77-Y0.37KW，RW107RWF77-Y0.55KW，RW107RWF77-Y0.75KW，RW107RWF77-Y1.1KW，RW107RWF77-Y1.5KW，RW107RWF77-Y100M4，RW107RWF77-Y112M4，RW107RWF77-Y2.2KW，RW107RWF77-Y3KW，RW107RWF77-Y4KW，RW107RWF77-Y63M4，RW107RWF77-Y71M4，RW107RWF77-Y80M4，RW107RWF77-Y90M4，RW107RWF77-YB100L4，RW107RWF77-YB112M4，RW107RWF77-YB63M4，RW107RWF77-YB71M4，RW107RWF77-YB80M4，RW107RWF77-YB90S4，RW107RWF77-YDP100L4，RW107RWF77-YDP112M4，RW107RWF77-YDP63M4，RW107RWF77-YDP71M4，RW107RWF77-YDP80M4，RW107RWF77-YDP90S4，RW107RWF77-YE100L4，RW107RWF77-YE112M4，RW107RWF77-YE63M4，RW107RWF77-YE71M4，RW107RWF77-YE80M4，RW107RWF77-YE90S4，RW107RWF77-YEJ100L4，RW107RWF77-YEJ112M4，RW107RWF77-YEJ63M4，RW107RWF77-YEJ71M4，RW107RWF77-YEJ80M4，RW107RWF77-YEJ90S4，RW107RWF77-YEJB100L4，RW107RWF77-YEJB112M4，RW107RWF77-YEJB63M4，RW107RWF77-YEJB71M4，RW107RWF77-YEJB80M4，RW107RWF77-YEJB90S4，RW107RWF77-YP100L4，RW107RWF77-YP112M4，RW107RWF77-YP63M4，RW107RWF77-YP71M4，RW107RWF77-YP80M4，RW107RWF77-YP90S4，RW107RWF77-YPB100L4，RW107RWF77-YPB112M4，RW107RWF77-YPB63M4，RW107RWF77-YPB71M4，RW107RWF77-YPB80M4，RW107RWF77-YPB90S4，RW107RWF77-YPE100L4，RW107RWF77-YPE112M4，RW107RWF77-YPE63M4，RW107RWF77-YPE71M4，RW107RWF77-YPE80M4，RW107RWF77-YPE90S4，RW107RWF77-YS100L4，RW107RWF77-YS112M4，RW107RWF77-YS63M4，RW107RWF77-YS71M4，RW107RWF77-YS80M4，RW107RWF77-YS90S4，RW107RWF77-YVB100L4，RW107RWF77-YVB112M4，RW107RWF77-YVB63M4，RW107RWF77-YVB71M4，RW107RWF77-YVB80M4，RW107RWF77-YVB90S4，RW107RWF77-YVP100L4，RW107RWF77-YVP112M4，RW107RWF77-YVP63M4，RW107RWF77-YVP71M4，RW107RWF77-YVP80M4，RW107RWF77-YVP90S4，RW107RWF77-YVPEJ100L4，RW107RWF77-YVPEJ112M4，RW107RWF77-YVPEJ63M4，RW107RWF77-YVPEJ71M4，RW107RWF77-YVPEJ80M4，RW107RWF77-YVPEJ90S4，R109R79-Y100M4，R109R79-Y112M4，R109R79-Y63M4，R109R79-Y71M4，R109R79-Y80M4，R109R79-Y90M4，R109RF79-Y0.12KW，R109RF79-Y0.18KW，R109RF79-Y0.25KW，R109RF79-Y0.37KW，R109RF79-Y0.55KW，R109RF79-Y0.75KW，R109RF79-Y1.1KW，R109RF79-Y1.5KW，R109RF79-Y100M4，R109RF79-Y112M4，R109RF79-Y2.2KW，R109RF79-Y3KW，R109RF79-Y4KW，R109RF79-Y63M4，R109RF79-Y71M4，R109RF79-Y80M4，R109RF79-Y90M4，R109RF79-YB100L4，R109RF79-YB112M4，R109RF79-YB63M4，R109RF79-YB71M4，R109RF79-YB80M4，R109RF79-YB90S4，R109RF79-YDP100L4，R109RF79-YDP112M4，R109RF79-YDP63M4，R109RF79-YDP71M4，R109RF79-YDP80M4，R109RF79-YDP90S4，R109RF79-YE100L4，R109RF79-YE112M4，R109RF79-YE63M4，R109RF79-YE71M4，R109RF79-YE80M4，R109RF79-YE90S4，R109RF79-YEJ100L4，R109RF79-YEJ112M4，R109RF79-YEJ63M4，R109RF79-YEJ71M4，R109RF79-YEJ80M4，R109RF79-YEJ90S4，R109RF79-YEJB100L4，R109RF79-YEJB112M4，R109RF79-YEJB63M4，R109RF79-YEJB71M4，R109RF79-YEJB80M4，R109RF79-YEJB90S4，R109RF79-YP100L4，R109RF79-YP112M4，R109RF79-YP63M4，R109RF79-YP71M4，R109RF79-YP80M4，R109RF79-YP90S4，R109RF79-YPB100L4，R109RF79-YPB112M4，R109RF79-YPB63M4，R109RF79-YPB71M4，R109RF79-YPB80M4，R109RF79-YPB90S4，R109RF79-YPE100L4，R109RF79-YPE112M4，R109RF79-YPE63M4，R109RF79-YPE71M4，R109RF79-YPE80M4，R109RF79-YPE90S4，R109RF79-YS100L4，R109RF79-YS112M4，R109RF79-YS63M4，R109RF79-YS71M4，R109RF79-YS80M4，R109RF79-YS90S4，R109RF79-YVB100L4，R109RF79-YVB112M4，R109RF79-YVB63M4，R109RF79-YVB71M4，R109RF79-YVB80M4，R109RF79-YVB90S4，R109RF79-YVP100L4，R109RF79-YVP112M4，R109RF79-YVP63M4，R109RF79-YVP71M4，R109RF79-YVP80M4，R109RF79-YVP90S4，R109RF79-YVPEJ100L4，R109RF79-YVPEJ112M4，R109RF79-YVPEJ63M4，R109RF79-YVPEJ71M4，R109RF79-YVPEJ80M4，R109RF79-YVPEJ90S4。

R109R79減速機生產廠家：看廠請聯系微信13827261050，獲取位置，需提前一天預約http://www.0668room.com/product/list-rxiliejiansuji-cn.html

推薦型號：R109減速機
