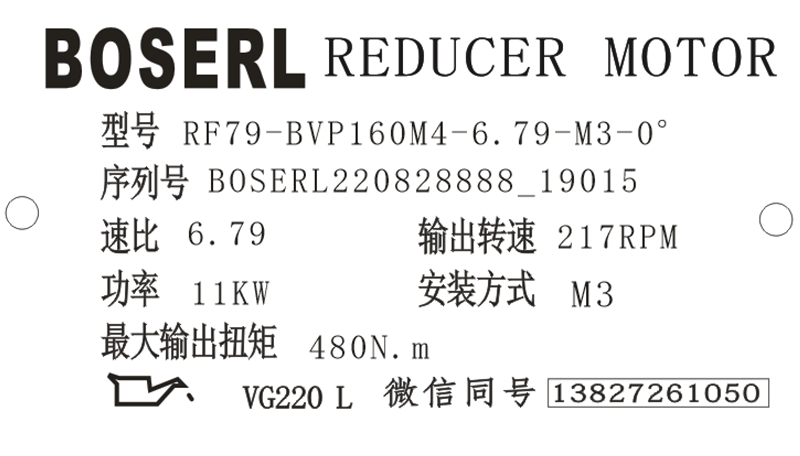

RF79減速機銘牌參數說明解讀含義：有關型號描述的詳細情況及其他信息可以參閱本業附件下載中的RF79減速機選型樣本。

RF79-BVP160M4-6.79-M3-0°

RF：系列代號

79：減速機規格代號

B：電機

VP：變頻電機

160：電機規格代號

M：電機定子鐵心長度代號

4：電機級數

6.79：減速機傳動比

M3：減速機安裝位置

0°：接線盒位置

RF79減速機潤滑油型號：

RF79減速機特殊應用場合必須使用特殊潤滑油，比如要求長使用壽命潤滑油。若需要可提供用于食品行業和生物降解潤滑油。

RF79減速機潤滑油加注量，具體值根據級數與傳動比的不同而各異。請您在加注潤滑油時一定注意油位螺栓所指示的精確油量。本頁附件中的RF79減速機選型樣本中列出了安裝位置從M1到M6RF79減速機相應的潤滑油加注標準，請自行下載查看。

RF79減速機某些安裝位置發生攪油損失的機會較高。出現下列情況時請與BOSERL公司進行聯系：若無特殊規定，BOSERL公司發貨時會根據RF79減速機的安裝位置給驅動裝置加潤滑油，因此應在訂貨時指定安裝位置（M1…M6，參見“RF79減速機說明書中的安裝位置與訂貨說明”章節）。若之后對安裝位置需要改動，則加潤滑油必須與安裝位置相符（潤滑油加注量）。RF系列減速機

RF79減速機推薦使用的潤滑油，其等級和粘度指標見下表：

RF79減速機使用說明：

RF79減速機的螺母：立式安裝RF79減速機輸出法蘭直徑250螺母規格M12；立式安裝RF79減速機輸出法蘭直徑300螺母規格M12；RF79減速機螺母/螺母擰緊扭矩強度等級10.9。齒輪減速電機

RF79減速機危險使用說明：驅動裝置意外啟動會造成擠傷，可能造成重傷或死亡；開始工作前，應先斷開減速電機的電源并且采取措施防止意外接通！

RF79減速機警告說明：由于RF79減速機發熱或RF79減速機油溫過高可能引起燙傷；對RF79減速機進行操作前先冷卻；擰出油位檢查螺栓和放油螺栓時要格外小心。

RF79減速機注意事項：若未注入正確的RF79減速機油則可能造成潤滑油性能失效，可能造成財產損失；合成潤滑油不可能相互混用并不可與礦物潤滑油混用；礦物油用作標準的潤滑油，不能用于特殊行業。

RF79減速機提示事項：油位檢查螺栓、放油螺栓、以及透氣閥的位置在安裝位置上，要參見RF79減速機說明書安裝位置章節中的內容。立式減速機

RF79減速機型號：

YQRF77-AM100M4，YQRF77-AM112M4，YQRF77-AM132M4，YQRF77-AM160M4，YQRF77-AM71M4，YQRF77-AM80M4，YQRF77-AM90M4，YQRF77-Y0.18KW，YQRF77-Y0.25KW，YQRF77-Y0.37KW，YQRF77-Y0.55KW，YQRF77-Y0.75KW，YQRF77-Y1.1KW，YQRF77-Y1.5KW，YQRF77-Y100M4，YQRF77-Y112M4，YQRF77-Y11KW，YQRF77-Y132M4，YQRF77-Y15KW，YQRF77-Y160M4，YQRF77-Y2.2KW，YQRF77-Y3KW，YQRF77-Y4KW，YQRF77-Y5.5KW，YQRF77-Y7.5KW，YQRF77-Y71M4，YQRF77-Y80M4，YQRF77-Y90M4，YQRF77-YB100M4，YQRF77-YB112M4，YQRF77-YB132M4，YQRF77-YB160M4，YQRF77-YB71M4，YQRF77-YB80M4，YQRF77-YB90M4，YQRF77-YDP100M4，YQRF77-YDP112M4，YQRF77-YDP132M4，YQRF77-YDP160M4，YQRF77-YDP71M4，YQRF77-YDP80M4，YQRF77-YDP90M4，YQRF77-YE100M4，YQRF77-YE112M4，YQRF77-YE132M4，YQRF77-YE160M4，YQRF77-YE71M4，YQRF77-YE80M4，YQRF77-YE90M4，YQRF77-YEJ100M4，YQRF77-YEJ112M4，YQRF77-YEJ132M4，YQRF77-YEJ160M4，YQRF77-YEJ71M4，YQRF77-YEJ80M4，YQRF77-YEJ90M4，YQRF77-YEJB100M4，YQRF77-YEJB112M4，YQRF77-YEJB132M4，YQRF77-YEJB160M4，YQRF77-YEJB71M4，YQRF77-YEJB80M4，YQRF77-YEJB90M4，YQRF77-YP100M4，YQRF77-YP112M4，YQRF77-YP132M4，YQRF77-YP160M4，YQRF77-YP71M4，YQRF77-YP80M4，YQRF77-YP90M4，YQRF77-YPB100M4，YQRF77-YPB112M4，YQRF77-YPB132M4，YQRF77-YPB160M4，YQRF77-YPB71M4，YQRF77-YPB80M4，YQRF77-YPB90M4，YQRF77-YPE100M4，YQRF77-YPE112M4，YQRF77-YPE132M4，YQRF77-YPE160M4，YQRF77-YPE71M4，YQRF77-YPE80M4，YQRF77-YPE90M4，YQRF77-YS100M4，YQRF77-YS112M4，YQRF77-YS132M4，YQRF77-YS160M4，YQRF77-YS71M4，YQRF77-YS80M4，YQRF77-YS90M4，YQRF77-YVB100M4，YQRF77-YVB112M4，YQRF77-YVB132M4，YQRF77-YVB160M4，YQRF77-YVB71M4，YQRF77-YVB80M4，YQRF77-YVB90M4，YQRF77-YVP100M4，YQRF77-YVP112M4，YQRF77-YVP132M4，YQRF77-YVP160M4，YQRF77-YVP71M4，YQRF77-YVP80M4，YQRF77-YVP90M4，YQRF77-YVPEJ100M4，YQRF77-YVPEJ112M4，YQRF77-YVPEJ132M4，YQRF77-YVPEJ160M4，YQRF77-YVPEJ71M4，YQRF77-YVPEJ80M4，YQRF77-YVPEJ90M4，JCRF77-AM100M4，JCRF77-AM112M4，JCRF77-AM132M4，JCRF77-AM160M4，JCRF77-AM71M4，JCRF77-AM80M4，JCRF77-AM90M4，JCRF77-Y0.18KW，JCRF77-Y0.25KW，JCRF77-Y0.37KW，JCRF77-Y0.55KW，JCRF77-Y0.75KW，JCRF77-Y1.1KW，JCRF77-Y1.5KW，JCRF77-Y100M4，JCRF77-Y112M4，JCRF77-Y11KW，JCRF77-Y132M4，JCRF77-Y15KW，JCRF77-Y160M4，JCRF77-Y2.2KW，JCRF77-Y3KW，JCRF77-Y4KW，JCRF77-Y5.5KW，JCRF77-Y7.5KW，JCRF77-Y71M4，JCRF77-Y80M4，JCRF77-Y90M4，JCRF77-YB100M4，JCRF77-YB112M4，JCRF77-YB132M4，JCRF77-YB160M4，JCRF77-YB71M4，JCRF77-YB80M4，JCRF77-YB90M4，JCRF77-YDP100M4，JCRF77-YDP112M4，JCRF77-YDP132M4，JCRF77-YDP160M4，JCRF77-YDP71M4，JCRF77-YDP80M4，JCRF77-YDP90M4，JCRF77-YE100M4，JCRF77-YE112M4，JCRF77-YE132M4，JCRF77-YE160M4，JCRF77-YE71M4，JCRF77-YE80M4，JCRF77-YE90M4，JCRF77-YEJ100M4，JCRF77-YEJ112M4，JCRF77-YEJ132M4，JCRF77-YEJ160M4，JCRF77-YEJ71M4，JCRF77-YEJ80M4，JCRF77-YEJ90M4，JCRF77-YEJB100M4，JCRF77-YEJB112M4，JCRF77-YEJB132M4，JCRF77-YEJB160M4，JCRF77-YEJB71M4，JCRF77-YEJB80M4，JCRF77-YEJB90M4，JCRF77-YP100M4，JCRF77-YP112M4，JCRF77-YP132M4，JCRF77-YP160M4，JCRF77-YP71M4，JCRF77-YP80M4，JCRF77-YP90M4，JCRF77-YPB100M4，JCRF77-YPB112M4，JCRF77-YPB132M4，JCRF77-YPB160M4，JCRF77-YPB71M4，JCRF77-YPB80M4，JCRF77-YPB90M4，JCRF77-YPE100M4，JCRF77-YPE112M4，JCRF77-YPE132M4，JCRF77-YPE160M4，JCRF77-YPE71M4，JCRF77-YPE80M4，JCRF77-YPE90M4，JCRF77-YS100M4，JCRF77-YS112M4，JCRF77-YS132M4，JCRF77-YS160M4，JCRF77-YS71M4，JCRF77-YS80M4，JCRF77-YS90M4，JCRF77-YVB100M4，JCRF77-YVB112M4，JCRF77-YVB132M4，JCRF77-YVB160M4，JCRF77-YVB71M4，JCRF77-YVB80M4，JCRF77-YVB90M4，JCRF77-YVP100M4，JCRF77-YVP112M4，JCRF77-YVP132M4，JCRF77-YVP160M4，JCRF77-YVP71M4，JCRF77-YVP80M4，JCRF77-YVP90M4，JCRF77-YVPEJ100M4，JCRF77-YVPEJ112M4，JCRF77-YVPEJ132M4，JCRF77-YVPEJ160M4，JCRF77-YVPEJ71M4，JCRF77-YVPEJ80M4，JCRF77-YVPEJ90M4，XDRF77-AM100M4，XDRF77-AM112M4，XDRF77-AM132M4，XDRF77-AM160M4，XDRF77-AM71M4，XDRF77-AM80M4，XDRF77-AM90M4，XDRF77-Y0.18KW，XDRF77-Y0.25KW，XDRF77-Y0.37KW，XDRF77-Y0.55KW，XDRF77-Y0.75KW，XDRF77-Y1.1KW，XDRF77-Y1.5KW，XDRF77-Y100M4，XDRF77-Y112M4，XDRF77-Y11KW，XDRF77-Y132M4，XDRF77-Y15KW，XDRF77-Y160M4，XDRF77-Y2.2KW，XDRF77-Y3KW，XDRF77-Y4KW，XDRF77-Y5.5KW，XDRF77-Y7.5KW，XDRF77-Y71M4，XDRF77-Y80M4，XDRF77-Y90M4，XDRF77-YB100M4，XDRF77-YB112M4，XDRF77-YB132M4，XDRF77-YB160M4，XDRF77-YB71M4，XDRF77-YB80M4，XDRF77-YB90M4，XDRF77-YDP100M4，XDRF77-YDP112M4，XDRF77-YDP132M4，XDRF77-YDP160M4，XDRF77-YDP71M4，XDRF77-YDP80M4，XDRF77-YDP90M4，XDRF77-YE100M4，XDRF77-YE112M4，XDRF77-YE132M4，XDRF77-YE160M4，XDRF77-YE71M4，XDRF77-YE80M4，XDRF77-YE90M4，XDRF77-YEJ100M4，XDRF77-YEJ112M4，XDRF77-YEJ132M4，XDRF77-YEJ160M4，XDRF77-YEJ71M4，XDRF77-YEJ80M4，XDRF77-YEJ90M4，XDRF77-YEJB100M4，XDRF77-YEJB112M4，XDRF77-YEJB132M4，XDRF77-YEJB160M4，XDRF77-YEJB71M4，XDRF77-YEJB80M4，XDRF77-YEJB90M4，XDRF77-YP100M4，XDRF77-YP112M4，XDRF77-YP132M4，XDRF77-YP160M4，XDRF77-YP71M4，XDRF77-YP80M4，XDRF77-YP90M4，XDRF77-YPB100M4，XDRF77-YPB112M4，XDRF77-YPB132M4，XDRF77-YPB160M4，XDRF77-YPB71M4，XDRF77-YPB80M4，XDRF77-YPB90M4，XDRF77-YPE100M4，XDRF77-YPE112M4，XDRF77-YPE132M4，XDRF77-YPE160M4，XDRF77-YPE71M4，XDRF77-YPE80M4，XDRF77-YPE90M4，XDRF77-YS100M4，XDRF77-YS112M4，XDRF77-YS132M4，XDRF77-YS160M4，XDRF77-YS71M4，XDRF77-YS80M4，XDRF77-YS90M4，XDRF77-YVB100M4，XDRF77-YVB112M4，XDRF77-YVB132M4，XDRF77-YVB160M4，XDRF77-YVB71M4，XDRF77-YVB80M4，XDRF77-YVB90M4，XDRF77-YVP100M4，XDRF77-YVP112M4，XDRF77-YVP132M4，XDRF77-YVP160M4，XDRF77-YVP71M4，XDRF77-YVP80M4，XDRF77-YVP90M4，XDRF77-YVPEJ100M4，XDRF77-YVPEJ112M4，XDRF77-YVPEJ132M4，XDRF77-YVPEJ160M4，XDRF77-YVPEJ71M4，XDRF77-YVPEJ80M4，XDRF77-YVPEJ90M4，RF79-AM100M4，RF79-AM112M4，RF79-AM132M4，RF79-AM160M4，RF79-AM71M4，RF79-AM80M4，RF79-AM90M4，RF79-Y0.18KW，RF79-Y0.25KW，RF79-Y0.37KW，RF79-Y0.55KW，RF79-Y0.75KW，RF79-Y1.1KW，RF79-Y1.5KW，RF79-Y100M4，RF79-Y112M4，RF79-Y11KW，RF79-Y132M4，RF79-Y15KW，RF79-Y160M4，RF79-Y2.2KW，RF79-Y3KW，RF79-Y4KW，RF79-Y5.5KW，RF79-Y7.5KW，RF79-Y71M4，RF79-Y80M4，RF79-Y90M4，RF79-YB100M4，RF79-YB112M4，RF79-YB132M4，RF79-YB160M4，RF79-YB71M4，RF79-YB80M4，RF79-YB90M4，RF79-YDP100M4，RF79-YDP112M4，RF79-YDP132M4，RF79-YDP160M4，RF79-YDP71M4，RF79-YDP80M4，RF79-YDP90M4，RF79-YE100M4，RF79-YE112M4，RF79-YE132M4，RF79-YE160M4，RF79-YE71M4，RF79-YE80M4，RF79-YE90M4，RF79-YEJ100M4，RF79-YEJ112M4，RF79-YEJ132M4，RF79-YEJ160M4，RF79-YEJ71M4，RF79-YEJ80M4，RF79-YEJ90M4，RF79-YEJB100M4，RF79-YEJB112M4，RF79-YEJB132M4，RF79-YEJB160M4，RF79-YEJB71M4，RF79-YEJB80M4，RF79-YEJB90M4，RF79-YP100M4，RF79-YP112M4，RF79-YP132M4，RF79-YP160M4，RF79-YP71M4，RF79-YP80M4，RF79-YP90M4，RF79-YPB100M4，RF79-YPB112M4，RF79-YPB132M4，RF79-YPB160M4，RF79-YPB71M4，RF79-YPB80M4，RF79-YPB90M4，RF79-YPE100M4，RF79-YPE112M4，RF79-YPE132M4，RF79-YPE160M4，RF79-YPE71M4，RF79-YPE80M4，RF79-YPE90M4，RF79-YS100M4，RF79-YS112M4，RF79-YS132M4，RF79-YS160M4，RF79-YS71M4，RF79-YS80M4，RF79-YS90M4，RF79-YVB100M4，RF79-YVB112M4，RF79-YVB132M4，RF79-YVB160M4，RF79-YVB71M4，RF79-YVB80M4，RF79-YVB90M4，RF79-YVP100M4，RF79-YVP112M4，RF79-YVP132M4，RF79-YVP160M4，RF79-YVP71M4，RF79-YVP80M4，RF79-YVP90M4，RF79-YVPEJ100M4，RF79-YVPEJ112M4，RF79-YVPEJ132M4，RF79-YVPEJ160M4，RF79-YVPEJ71M4，RF79-YVPEJ80M4，RF79-YVPEJ90M4，RWF77-AM100M4，RWF77-AM112M4，RWF77-AM132M4，RWF77-AM160M4，RWF77-AM71M4，RWF77-AM80M4，RWF77-AM90M4，RWF77-Y0.18KW，RWF77-Y0.25KW，RWF77-Y0.37KW，RWF77-Y0.55KW，RWF77-Y0.75KW，RWF77-Y1.1KW，RWF77-Y1.5KW，RWF77-Y100M4，RWF77-Y112M4，RWF77-Y11KW，RWF77-Y132M4，RWF77-Y15KW，RWF77-Y160M4，RWF77-Y2.2KW，RWF77-Y3KW，RWF77-Y4KW，RWF77-Y5.5KW，RWF77-Y7.5KW，RWF77-Y71M4，RWF77-Y80M4，RWF77-Y90M4，RWF77-YB100M4，RWF77-YB112M4，RWF77-YB132M4，RWF77-YB160M4，RWF77-YB71M4，RWF77-YB80M4，RWF77-YB90M4，RWF77-YDP100M4，RWF77-YDP112M4，RWF77-YDP132M4，RWF77-YDP160M4，RWF77-YDP71M4，RWF77-YDP80M4，RWF77-YDP90M4，RWF77-YE100M4，RWF77-YE112M4，RWF77-YE132M4，RWF77-YE160M4，RWF77-YE71M4，RWF77-YE80M4，RWF77-YE90M4，RWF77-YEJ100M4，RWF77-YEJ112M4，RWF77-YEJ132M4，RWF77-YEJ160M4，RWF77-YEJ71M4，RWF77-YEJ80M4，RWF77-YEJ90M4，RWF77-YEJB100M4，RWF77-YEJB112M4，RWF77-YEJB132M4，RWF77-YEJB160M4，RWF77-YEJB71M4，RWF77-YEJB80M4，RWF77-YEJB90M4，RWF77-YP100M4，RWF77-YP112M4，RWF77-YP132M4，RWF77-YP160M4，RWF77-YP71M4，RWF77-YP80M4，RWF77-YP90M4，RWF77-YPB100M4，RWF77-YPB112M4，RWF77-YPB132M4，RWF77-YPB160M4，RWF77-YPB71M4，RWF77-YPB80M4，RWF77-YPB90M4，RWF77-YPE100M4，RWF77-YPE112M4，RWF77-YPE132M4，RWF77-YPE160M4，RWF77-YPE71M4，RWF77-YPE80M4，RWF77-YPE90M4，RWF77-YS100M4，RWF77-YS112M4，RWF77-YS132M4，RWF77-YS160M4，RWF77-YS71M4，RWF77-YS80M4，RWF77-YS90M4，RWF77-YVB100M4，RWF77-YVB112M4，RWF77-YVB132M4，RWF77-YVB160M4，RWF77-YVB71M4，RWF77-YVB80M4，RWF77-YVB90M4，RWF77-YVP100M4，RWF77-YVP112M4，RWF77-YVP132M4，RWF77-YVP160M4，RWF77-YVP71M4，RWF77-YVP80M4，RWF77-YVP90M4，RWF77-YVPEJ100M4，RWF77-YVPEJ112M4，RWF77-YVPEJ132M4，RWF77-YVPEJ160M4，RWF77-YVPEJ71M4，RWF77-YVPEJ80M4，RWF77-YVPEJ90M4。

RF79減速機生產廠家展示：看廠請聯系微信13827261050，獲取位置，需提前一天預約http://www.0668room.com/product/list-rfxiliejiansuji-cn.html

推薦類似型號：R79減速機
