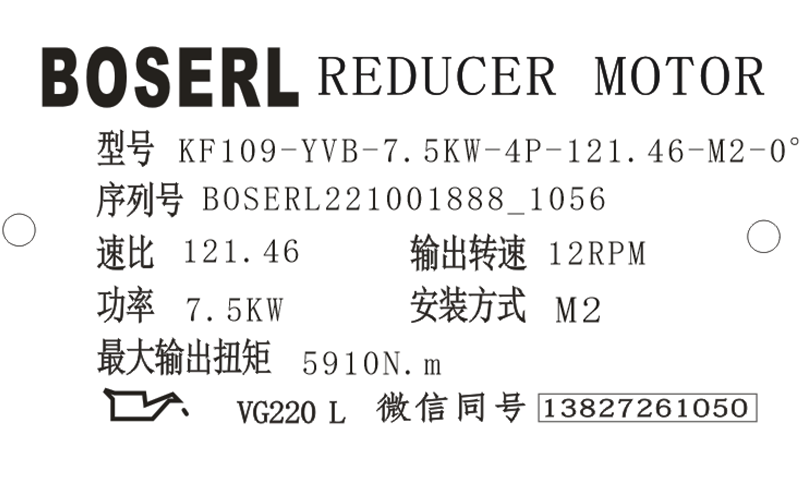

KF109減速機銘牌參數說明解讀含義：有關型號描述的詳細情況及其他信息可以參閱本業附件下載中的K109減速機選型樣本。

KF109-YVB-7.5KW-4P-121.46-M2-0°

KF：系列代號

109：減速機規格代號

YVB：電機

7.5KW：電機功率

4P：電機級數

121.46：減速機傳動比

M2：減速機安裝位置

0°：接線盒位置

KF109減速機潤滑油型號：

KF109減速機某些安裝位置發生攪油損失的機會較高。出現下列情況時請與BOSERL公司進行聯系：若無特殊規定，BOSERL公司發貨時會根據KF109減速機的安裝位置給驅動裝置加潤滑油，因此應在訂貨時指定安裝位置（M1…M6，參見“KF109減速機說明書中的安裝位置與訂貨說明”章節）。若之后對安裝位置需要改動，則加潤滑油必須與安裝位置相符（潤滑油加注量）。直角減速機

KF109減速機潤滑油加注量，具體值根據級數與傳動比的不同而各異。請您在加注潤滑油時一定注意油位螺栓所指示的精確油量。本頁附件中的KF109減速機選型樣本中列出了安裝位置從M1到M6KF109減速機相應的潤滑油加注標準，請自行下載查看。

KF109減速機特殊應用場合必須使用特殊潤滑油，比如要求長使用壽命潤滑油。若需要可提供用于食品行業和生物降解潤滑油。齒輪減速電機

KF109減速機推薦使用的潤滑油，其等級和粘度指標見下表：

KF109減速機使用說明：

KF109減速機警告說明：由于KF109減速機發熱或KF109減速機油溫過高可能引起燙傷；對KF109減速機進行操作前先冷卻；擰出油位檢查螺栓和放油螺栓時要格外小心。

KF109減速機注意事項：若未注入正確的KF109減速機油則可能造成潤滑油性能失效，可能造成財產損失；合成潤滑油不可能相互混用并不可與礦物潤滑油混用；礦物油用作標準的潤滑油，不能用于特殊行業。

KF109減速機提示事項：油位檢查螺栓、放油螺栓、以及透氣閥的位置在安裝位置上，要參見KF109減速機說明書安裝位置章節中的內容。

KF109減速機的螺母：立式安裝KF109減速機輸出法蘭螺母規格M16；KF109減速機螺母/螺母擰緊扭矩強度等級10.9。伺服電機減速機

KF109減速機危險使用說明：驅動裝置意外啟動會造成擠傷，可能造成重傷或死亡；開始工作前，應先斷開減速電機的電源并且采取措施防止意外接通！

KF109減速機型號：

WKF107-Y100M4，WKF107-Y112M4，WKF107-Y11SKF，WKF107-Y132M4，WKF107-Y15SKF，WKF107-Y160M4，WKF107-Y18.5SKF，WKF107-Y180M4，WKF107-Y200M4，WKF107-Y225M4，WKF107-Y22SKF，WKF107-Y30SKF，WKF107-Y37SKF，WKF107-Y3SKF，WKF107-Y45SKF，WKF107-Y4SKF，WKF107-Y5.5SKF，WKF107-Y7.5SKF，WKF107-YB100M4，WKF107-YB112M4，WKF107-YB132M4，WKF107-YB160M4，WKF107-YB180M4，WKF107-YB200M4，WKF107-YB225M4，WKF107-YDP100M4，WKF107-YDP112M4，WKF107-YDP132M4，WKF107-YDP160M4，WKF107-YDP180M4，WKF107-YDP200M4，WKF107-YDP225M4，WKF107-YE100M4，WKF107-YE112M4，WKF107-YE132M4，WKF107-YE160M4，WKF107-YE180M4，WKF107-YE200M4，WKF107-YE225M4，WKF107-YEJ100M4，WKF107-YEJ112M4，WKF107-YEJ132M4，WKF107-YEJ160M4，WKF107-YEJ180M4，WKF107-YEJ200M4，WKF107-YEJ225M4，WKF107-YEJB100M4，WKF107-YEJB112M4，WKF107-YEJB132M4，WKF107-YEJB160M4，WKF107-YEJB180M4，WKF107-YEJB200M4，WKF107-YEJB225M4，WKF107-YP100M4，WKF107-YP112M4，WKF107-YP132M4，WKF107-YP160M4，WKF107-YP180M4，WKF107-YP200M4，WKF107-YP225M4，WKF107-YPB100M4，WKF107-YPB112M4，WKF107-YPB132M4，WKF107-YPB160M4，WKF107-YPB180M4，WKF107-YPB200M4，WKF107-YPB225M4，WKF107-YPE100M4，WKF107-YPE112M4，WKF107-YPE132M4，WKF107-YPE160M4，WKF107-YPE180M4，WKF107-YPE200M4，WKF107-YPE225M4，WKF107-YS100M4，WKF107-YS112M4，WKF107-YS132M4，WKF107-YS160M4，WKF107-YS180M4，WKF107-YS200M4，WKF107-YS225M4，WKF107-YVB100M4，WKF107-YVB112M4，WKF107-YVB132M4，WKF107-YVB160M4，WKF107-YVB180M4，WKF107-YVB200M4，WKF107-YVB225M4，WKF107-YVP100M4，WKF107-YVP112M4，WKF107-YVP132M4，WKF107-YVP160M4，WKF107-YVP180M4，WKF107-YVP200M4，WKF107-YVP225M4，WKF107-YVPEJ100M4，WKF107-YVPEJ112M4，WKF107-YVPEJ132M4，WKF107-YVPEJ160M4，WKF107-YVPEJ180M4，WKF107-YVPEJ200M4，WKF107-YVPEJ225M4，AKF107-Y100M4，AKF107-Y112M4，AKF107-Y11SKF，AKF107-Y132M4，AKF107-Y15SKF，AKF107-Y160M4，AKF107-Y18.5SKF，AKF107-Y180M4，AKF107-Y200M4，AKF107-Y225M4，AKF107-Y22SKF，AKF107-Y30SKF，AKF107-Y37SKF，AKF107-Y3SKF，AKF107-Y45SKF，AKF107-Y4SKF，AKF107-Y5.5SKF，AKF107-Y7.5SKF，AKF107-YB100M4，AKF107-YB112M4，AKF107-YB132M4，AKF107-YB160M4，AKF107-YB180M4，AKF107-YB200M4，AKF107-YB225M4，AKF107-YDP100M4，AKF107-YDP112M4，AKF107-YDP132M4，AKF107-YDP160M4，AKF107-YDP180M4，AKF107-YDP200M4，AKF107-YDP225M4，AKF107-YE100M4，AKF107-YE112M4，AKF107-YE132M4，AKF107-YE160M4，AKF107-YE180M4，AKF107-YE200M4，AKF107-YE225M4，AKF107-YEJ100M4，AKF107-YEJ112M4，AKF107-YEJ132M4，AKF107-YEJ160M4，AKF107-YEJ180M4，AKF107-YEJ200M4，AKF107-YEJ225M4，AKF107-YEJB100M4，AKF107-YEJB112M4，AKF107-YEJB132M4，AKF107-YEJB160M4，AKF107-YEJB180M4，AKF107-YEJB200M4，AKF107-YEJB225M4，AKF107-YP100M4，AKF107-YP112M4，AKF107-YP132M4，AKF107-YP160M4，AKF107-YP180M4，AKF107-YP200M4，AKF107-YP225M4，AKF107-YPB100M4，AKF107-YPB112M4，AKF107-YPB132M4，AKF107-YPB160M4，AKF107-YPB180M4，AKF107-YPB200M4，AKF107-YPB225M4，AKF107-YPE100M4，AKF107-YPE112M4，AKF107-YPE132M4，AKF107-YPE160M4，AKF107-YPE180M4，AKF107-YPE200M4，AKF107-YPE225M4，AKF107-YS100M4，AKF107-YS112M4，AKF107-YS132M4，AKF107-YS160M4，AKF107-YS180M4，AKF107-YS200M4，AKF107-YS225M4，AKF107-YVB100M4，AKF107-YVB112M4，AKF107-YVB132M4，AKF107-YVB160M4，AKF107-YVB180M4，AKF107-YVB200M4，AKF107-YVB225M4，AKF107-YVP100M4，AKF107-YVP112M4，AKF107-YVP132M4，AKF107-YVP160M4，AKF107-YVP180M4，AKF107-YVP200M4，AKF107-YVP225M4，AKF107-YVPEJ100M4，AKF107-YVPEJ112M4，AKF107-YVPEJ132M4，AKF107-YVPEJ160M4，AKF107-YVPEJ180M4，AKF107-YVPEJ200M4，AKF107-YVPEJ225M4，NKF107-Y100M4，NKF107-Y112M4，NKF107-Y11SKF，NKF107-Y132M4，NKF107-Y15SKF，NKF107-Y160M4，NKF107-Y18.5SKF，NKF107-Y180M4，NKF107-Y200M4，NKF107-Y225M4，NKF107-Y22SKF，NKF107-Y30SKF，NKF107-Y37SKF，NKF107-Y3SKF，NKF107-Y45SKF，NKF107-Y4SKF，NKF107-Y5.5SKF，NKF107-Y7.5SKF，NKF107-YB100M4，NKF107-YB112M4，NKF107-YB132M4，NKF107-YB160M4，NKF107-YB180M4，NKF107-YB200M4，NKF107-YB225M4，NKF107-YDP100M4，NKF107-YDP112M4，NKF107-YDP132M4，NKF107-YDP160M4，NKF107-YDP180M4，NKF107-YDP200M4，NKF107-YDP225M4，NKF107-YE100M4，NKF107-YE112M4，NKF107-YE132M4，NKF107-YE160M4，NKF107-YE180M4，NKF107-YE200M4，NKF107-YE225M4，NKF107-YEJ100M4，NKF107-YEJ112M4，NKF107-YEJ132M4，NKF107-YEJ160M4，NKF107-YEJ180M4，NKF107-YEJ200M4，NKF107-YEJ225M4，NKF107-YEJB100M4，NKF107-YEJB112M4，NKF107-YEJB132M4，NKF107-YEJB160M4，NKF107-YEJB180M4，NKF107-YEJB200M4，NKF107-YEJB225M4，NKF107-YP100M4，NKF107-YP112M4，NKF107-YP132M4，NKF107-YP160M4，NKF107-YP180M4，NKF107-YP200M4，NKF107-YP225M4，NKF107-YPB100M4，NKF107-YPB112M4，NKF107-YPB132M4，NKF107-YPB160M4，NKF107-YPB180M4，NKF107-YPB200M4，NKF107-YPB225M4，NKF107-YPE100M4，NKF107-YPE112M4，NKF107-YPE132M4，NKF107-YPE160M4，NKF107-YPE180M4，NKF107-YPE200M4，NKF107-YPE225M4，NKF107-YS100M4，NKF107-YS112M4，NKF107-YS132M4，NKF107-YS160M4，NKF107-YS180M4，NKF107-YS200M4，NKF107-YS225M4，NKF107-YVB100M4，NKF107-YVB112M4，NKF107-YVB132M4，NKF107-YVB160M4，NKF107-YVB180M4，NKF107-YVB200M4，NKF107-YVB225M4，NKF107-YVP100M4，NKF107-YVP112M4，NKF107-YVP132M4，NKF107-YVP160M4，NKF107-YVP180M4，NKF107-YVP200M4，NKF107-YVP225M4，NKF107-YVPEJ100M4，NKF107-YVPEJ112M4，NKF107-YVPEJ132M4，NKF107-YVPEJ160M4，NKF107-YVPEJ180M4，NKF107-YVPEJ200M4，NKF107-YVPEJ225M4，SKF107-Y100M4，SKF107-Y112M4，SKF107-Y11SKF，SKF107-Y132M4，SKF107-Y15SKF，SKF107-Y160M4，SKF107-Y18.5SKF，SKF107-Y180M4，SKF107-Y200M4，SKF107-Y225M4，SKF107-Y22SKF，SKF107-Y30SKF，SKF107-Y37SKF，SKF107-Y3SKF，SKF107-Y45SKF，SKF107-Y4SKF，SKF107-Y5.5SKF，SKF107-Y7.5SKF，SKF107-YB100M4，SKF107-YB112M4，SKF107-YB132M4，SKF107-YB160M4，SKF107-YB180M4，SKF107-YB200M4，SKF107-YB225M4，SKF107-YDP100M4，SKF107-YDP112M4，SKF107-YDP132M4，SKF107-YDP160M4，SKF107-YDP180M4，SKF107-YDP200M4，SKF107-YDP225M4，SKF107-YE100M4，SKF107-YE112M4，SKF107-YE132M4，SKF107-YE160M4，SKF107-YE180M4，SKF107-YE200M4，SKF107-YE225M4，SKF107-YEJ100M4，SKF107-YEJ112M4，SKF107-YEJ132M4，SKF107-YEJ160M4，SKF107-YEJ180M4，SKF107-YEJ200M4，SKF107-YEJ225M4，SKF107-YEJB100M4，SKF107-YEJB112M4，SKF107-YEJB132M4，SKF107-YEJB160M4，SKF107-YEJB180M4，SKF107-YEJB200M4，SKF107-YEJB225M4，SKF107-YP100M4，SKF107-YP112M4，SKF107-YP132M4，SKF107-YP160M4，SKF107-YP180M4，SKF107-YP200M4，SKF107-YP225M4，SKF107-YPB100M4，SKF107-YPB112M4，SKF107-YPB132M4，SKF107-YPB160M4，SKF107-YPB180M4，SKF107-YPB200M4，SKF107-YPB225M4，SKF107-YPE100M4，SKF107-YPE112M4，SKF107-YPE132M4，SKF107-YPE160M4，SKF107-YPE180M4，SKF107-YPE200M4，SKF107-YPE225M4，SKF107-YS100M4，SKF107-YS112M4，SKF107-YS132M4，SKF107-YS160M4，SKF107-YS180M4，SKF107-YS200M4，SKF107-YS225M4，SKF107-YVB100M4，SKF107-YVB112M4，SKF107-YVB132M4，SKF107-YVB160M4，SKF107-YVB180M4，SKF107-YVB200M4，SKF107-YVB225M4，SKF107-YVP100M4，SKF107-YVP112M4，SKF107-YVP132M4，SKF107-YVP160M4，SKF107-YVP180M4，SKF107-YVP200M4，SKF107-YVP225M4，SKF107-YVPEJ100M4，SKF107-YVPEJ112M4，SKF107-YVPEJ132M4，SKF107-YVPEJ160M4，SKF107-YVPEJ180M4，SKF107-YVPEJ200M4，SKF107-YVPEJ225M4，GKF109-Y100M4，GKF109-Y112M4，GKF109-Y11SKF，GKF109-Y132M4，GKF109-Y15SKF，GKF109-Y160M4，GKF109-Y18.5SKF，GKF109-Y180M4，GKF109-Y200M4，GKF109-Y225M4，GKF109-Y22SKF，GKF109-Y30SKF，GKF109-Y37SKF，GKF109-Y3SKF，GKF109-Y45SKF，GKF109-Y4SKF，GKF109-Y5.5SKF，GKF109-Y7.5SKF，GKF109-YB100M4，GKF109-YB112M4，GKF109-YB132M4，GKF109-YB160M4，GKF109-YB180M4，GKF109-YB200M4，GKF109-YB225M4，GKF109-YDP100M4，GKF109-YDP112M4，GKF109-YDP132M4，GKF109-YDP160M4，GKF109-YDP180M4，GKF109-YDP200M4，GKF109-YDP225M4，GKF109-YE100M4，GKF109-YE112M4，GKF109-YE132M4，GKF109-YE160M4，GKF109-YE180M4，GKF109-YE200M4，GKF109-YE225M4，GKF109-YEJ100M4，GKF109-YEJ112M4，GKF109-YEJ132M4，GKF109-YEJ160M4，GKF109-YEJ180M4，GKF109-YEJ200M4，GKF109-YEJ225M4，GKF109-YEJB100M4，GKF109-YEJB112M4，GKF109-YEJB132M4，GKF109-YEJB160M4，GKF109-YEJB180M4，GKF109-YEJB200M4，GKF109-YEJB225M4，GKF109-YP100M4，GKF109-YP112M4，GKF109-YP132M4，GKF109-YP160M4，GKF109-YP180M4，GKF109-YP200M4，GKF109-YP225M4，GKF109-YPB100M4，GKF109-YPB112M4，GKF109-YPB132M4，GKF109-YPB160M4，GKF109-YPB180M4，GKF109-YPB200M4，GKF109-YPB225M4，GKF109-YPE100M4，GKF109-YPE112M4，GKF109-YPE132M4，GKF109-YPE160M4，GKF109-YPE180M4，GKF109-YPE200M4，GKF109-YPE225M4，GKF109-YS100M4，GKF109-YS112M4，GKF109-YS132M4，GKF109-YS160M4，GKF109-YS180M4，GKF109-YS200M4，GKF109-YS225M4，GKF109-YVB100M4，GKF109-YVB112M4，GKF109-YVB132M4，GKF109-YVB160M4，GKF109-YVB180M4，GKF109-YVB200M4，GKF109-YVB225M4，GKF109-YVP100M4，GKF109-YVP112M4，GKF109-YVP132M4，GKF109-YVP160M4，GKF109-YVP180M4，GKF109-YVP200M4，GKF109-YVP225M4，GKF109-YVPEJ100M4，GKF109-YVPEJ112M4，GKF109-YVPEJ132M4，GKF109-YVPEJ160M4，GKF109-YVPEJ180M4，GKF109-YVPEJ200M4，GKF109-YVPEJ225M4。

KF109減速機生產廠家展示：看廠請聯系微信13827261050，獲取位置，需提前一天預約http://www.0668room.com/product/list-kfxiliejiansuji-cn.html

推薦類似型號：K109減速機
