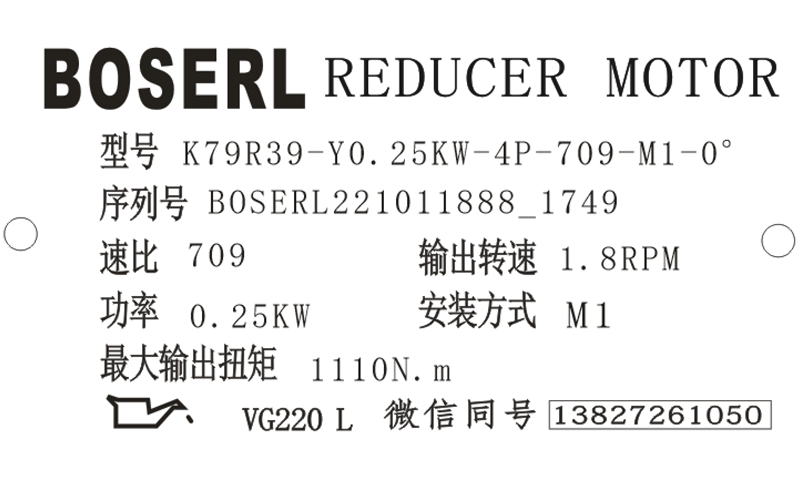

K79R39減速機銘牌參數說明解讀含義：有關型號描述的詳細情況及其他信息可以參閱本業附件下載中的K79R39減速機選型樣本。

K79R39-Y0.25KW-4P-709-M1-0°

K/R：系列代號

79/39：減速機規格代號

Y：電機

0.25KW：電機功率

4P：電機級數

709：減速機傳動比

M1：減速機安裝位置

0°：接線盒位置

K79R39減速機電機調試運行：

啟動前的檢查-安裝、接線結束后，接通開關前請檢查以下各點：安裝的斷路器以及過電流繼電器是否合適；接線是否有差錯；接地線是否確實接地。此外，為防范危險于未然，在運轉本減速電機預測有危險的場合，以及無法正常發揮功能的場合，為了防范危險情況，請在裝置側多加考慮預防措施。電壓以及頻率的變動:當施加于電機的電壓和頻率不是規定值時，電機特性將發生變化,請注意。電機電壓在額定電壓上下10%以內變動，電機是可以正常使用的，超過10%，有可能燒毀電機，同時伴有出力扭矩降低或電流大等異常。齒輪減速電機

開始運轉后的性能確認旋轉方向是否正確；電流值是否有超標；是否產生異常振動或噪音；啟動頻率是否過高；是否發生沖擊。若有異常，請按BOSERL減速電機說明書中的“電機故障處理”章節所述步驟執行。

關于帶變頻器的電機運行：若電機同時配有變頻器與電磁制動器，此時制動器的電源應另外設置不可與電機電源并聯使用；當電機配變頻器使用時，建議使用頻率在30-80Hz，將可得到較具實用之性能，且可以長時間運行；若需要更高或更低的轉速，也可以通過調整減速比來實現；當電機使用頻率在30Hz以下或80Hz以上時，與30-80Hz相比，電機溫度將上升，運行噪間/振動將變大，此時電機只能短時間運行，

請客戶謹慎使用；變頻電機特性曲線如下圖所示，在6-50Hz的范圍內，為恒轉矩運行，電機可保持連續運轉扭矩與50Hz時的額定扭矩相同(但30Hz以下電機發熱較快，不可長時間運行)；在50-120Hz的范圍內，為恒功率運行，電機可保持連續運轉輸出功率與50Hz時相同(高頻運行時電機轉速高，扭矩等比例降低，且80Hz以上電機發熱較快，不可長時間運行)。本公司變頻三相電機能夠配置變頻器進行變頻調速操作。當在低頻工作區工作時，由于電機轉速的降低而使電機原有設計的風冷系統的冷卻作用降低，電機溫升將會上升。而在高頻區工作時，過高的電機轉速使電機原有冷切風扇消耗更多的功率，增加了風摩損耗，降低了電機的效率，并且大大增加電機的運行噪聲。因此我們建議:在進行變頻操作時電機最好加裝獨立的冷卻風扇。直角減速機

K79R39減速機電機運轉時環境與操作注意點：

危險：在電機或所驅動設備上進行操作前，先切斷電源并鎖定。工作過程中一定要確保無爆炸性氣體存在；請勿在拆下接線盒罩殼的狀態下運轉。接線后，請在原先位置安裝接線盒罩殼。否則有可能會導致觸電。請切實進行安裝；運轉中，請絕對不要接近旋轉體(旋轉軸等)。否則有可能會被卷入，受傷；停電時，請務必切斷電源。否則不知不覺中來電可能會導致受傷、裝置損壞。

注意：運轉中，減速電機的溫度會變得很高。請注意不要觸及手和身體。否則有可能會導致燙傷；發生異常時，請立即停止運轉。否則有可能會導致觸電、受傷、火災。請勿超出額定負載使用。否則有可能會導致受傷、裝置損壞；使電機反轉時，請務必暫停后開始反轉。否則有可能會出現旋轉方向未發生改變的電機失控；電機即使在正常運行狀態，有時表面溫度也會有超過70°C的現象。電機運行時，若有靠近電機的可能請制作"高溫注意”圖標井貼于電機顯眼處；電機反轉時，單相電機按接線圖進行調整，三相電機只需要將電源線兩相對調即可。K系列減速機

K79R39減速電機型號：

YQK77R37-Y63M4，YQK77R37-Y71M4，YQK77R37-Y80M4，YQK77R37-Y90M4，YQK77RF37-Y0.12KW，YQK77RF37-Y0.18KW，YQK77RF37-Y0.25KW，YQK77RF37-Y0.37KW，YQK77RF37-Y0.55KW，YQK77RF37-Y0.75KW，YQK77RF37-Y1.1KW，YQK77RF37-Y1.5KW，YQK77RF37-Y63M4，YQK77RF37-Y71M4，YQK77RF37-Y80M4，YQK77RF37-Y90M4，YQK77RF37-YB63M4，YQK77RF37-YB71M4，YQK77RF37-YB80M4，YQK77RF37-YB90S4，YQK77RF37-YDP63M4，YQK77RF37-YDP71M4，YQK77RF37-YDP80M4，YQK77RF37-YDP90S4，YQK77RF37-YE63M4，YQK77RF37-YE71M4，YQK77RF37-YE80M4，YQK77RF37-YE90S4，YQK77RF37-YEJ63M4，YQK77RF37-YEJ71M4，YQK77RF37-YEJ80M4，YQK77RF37-YEJ90S4，YQK77RF37-YEJB63M4，YQK77RF37-YEJB71M4，YQK77RF37-YEJB80M4，YQK77RF37-YEJB90S4，YQK77RF37-YP63M4，YQK77RF37-YP71M4，YQK77RF37-YP80M4，YQK77RF37-YP90S4，YQK77RF37-YPB63M4，YQK77RF37-YPB71M4，YQK77RF37-YPB80M4，YQK77RF37-YPB90S4，YQK77RF37-YPE63M4，YQK77RF37-YPE71M4，YQK77RF37-YPE80M4，YQK77RF37-YPE90S4，YQK77RF37-YS63M4，YQK77RF37-YS71M4，YQK77RF37-YS80M4，YQK77RF37-YS90S4，YQK77RF37-YVB63M4，YQK77RF37-YVB71M4，YQK77RF37-YVB80M4，YQK77RF37-YVB90S4，YQK77RF37-YVP63M4，YQK77RF37-YVP71M4，YQK77RF37-YVP80M4，YQK77RF37-YVP90S4，YQK77RF37-YVPEJ63M4，YQK77RF37-YVPEJ71M4，YQK77RF37-YVPEJ80M4，YQK77RF37-YVPEJ90S4，AK77R37-Y63M4，AK77R37-Y71M4，AK77R37-Y80M4，AK77R37-Y90M4，AK77RF37-Y0.12KW，AK77RF37-Y0.18KW，AK77RF37-Y0.25KW，AK77RF37-Y0.37KW，AK77RF37-Y0.55KW，AK77RF37-Y0.75KW，AK77RF37-Y1.1KW，AK77RF37-Y1.5KW，AK77RF37-Y63M4，AK77RF37-Y71M4，AK77RF37-Y80M4，AK77RF37-Y90M4，AK77RF37-YB63M4，AK77RF37-YB71M4，AK77RF37-YB80M4，AK77RF37-YB90S4，AK77RF37-YDP63M4，AK77RF37-YDP71M4，AK77RF37-YDP80M4，AK77RF37-YDP90S4，AK77RF37-YE63M4，AK77RF37-YE71M4，AK77RF37-YE80M4，AK77RF37-YE90S4，AK77RF37-YEJ63M4，AK77RF37-YEJ71M4，AK77RF37-YEJ80M4，AK77RF37-YEJ90S4，AK77RF37-YEJB63M4，AK77RF37-YEJB71M4，AK77RF37-YEJB80M4，AK77RF37-YEJB90S4，AK77RF37-YP63M4，AK77RF37-YP71M4，AK77RF37-YP80M4，AK77RF37-YP90S4，AK77RF37-YPB63M4，AK77RF37-YPB71M4，AK77RF37-YPB80M4，AK77RF37-YPB90S4，AK77RF37-YPE63M4，AK77RF37-YPE71M4，AK77RF37-YPE80M4，AK77RF37-YPE90S4，AK77RF37-YS63M4，AK77RF37-YS71M4，AK77RF37-YS80M4，AK77RF37-YS90S4，AK77RF37-YVB63M4，AK77RF37-YVB71M4，AK77RF37-YVB80M4，AK77RF37-YVB90S4，AK77RF37-YVP63M4，AK77RF37-YVP71M4，AK77RF37-YVP80M4，AK77RF37-YVP90S4，AK77RF37-YVPEJ63M4，AK77RF37-YVPEJ71M4，AK77RF37-YVPEJ80M4，AK77RF37-YVPEJ90S4，SK77R37-Y63M4，SK77R37-Y71M4，SK77R37-Y80M4，SK77R37-Y90M4，SK77RF37-Y0.12KW，SK77RF37-Y0.18KW，SK77RF37-Y0.25KW，SK77RF37-Y0.37KW，SK77RF37-Y0.55KW，SK77RF37-Y0.75KW，SK77RF37-Y1.1KW，SK77RF37-Y1.5KW，SK77RF37-Y63M4，SK77RF37-Y71M4，SK77RF37-Y80M4，SK77RF37-Y90M4，SK77RF37-YB63M4，SK77RF37-YB71M4，SK77RF37-YB80M4，SK77RF37-YB90S4，SK77RF37-YDP63M4，SK77RF37-YDP71M4，SK77RF37-YDP80M4，SK77RF37-YDP90S4，SK77RF37-YE63M4，SK77RF37-YE71M4，SK77RF37-YE80M4，SK77RF37-YE90S4，SK77RF37-YEJ63M4，SK77RF37-YEJ71M4，SK77RF37-YEJ80M4，SK77RF37-YEJ90S4，SK77RF37-YEJB63M4，SK77RF37-YEJB71M4，SK77RF37-YEJB80M4，SK77RF37-YEJB90S4，SK77RF37-YP63M4，SK77RF37-YP71M4，SK77RF37-YP80M4，SK77RF37-YP90S4，SK77RF37-YPB63M4，SK77RF37-YPB71M4，SK77RF37-YPB80M4，SK77RF37-YPB90S4，SK77RF37-YPE63M4，SK77RF37-YPE71M4，SK77RF37-YPE80M4，SK77RF37-YPE90S4，SK77RF37-YS63M4，SK77RF37-YS71M4，SK77RF37-YS80M4，SK77RF37-YS90S4，SK77RF37-YVB63M4，SK77RF37-YVB71M4，SK77RF37-YVB80M4，SK77RF37-YVB90S4，SK77RF37-YVP63M4，SK77RF37-YVP71M4，SK77RF37-YVP80M4，SK77RF37-YVP90S4，SK77RF37-YVPEJ63M4，SK77RF37-YVPEJ71M4，SK77RF37-YVPEJ80M4，SK77RF37-YVPEJ90S4，XDK77R37-Y63M4，XDK77R37-Y71M4，XDK77R37-Y80M4，XDK77R37-Y90M4，XDK77RF37-Y0.12KW，XDK77RF37-Y0.18KW，XDK77RF37-Y0.25KW，XDK77RF37-Y0.37KW，XDK77RF37-Y0.55KW，XDK77RF37-Y0.75KW，XDK77RF37-Y1.1KW，XDK77RF37-Y1.5KW，XDK77RF37-Y63M4，XDK77RF37-Y71M4，XDK77RF37-Y80M4，XDK77RF37-Y90M4，XDK77RF37-YB63M4，XDK77RF37-YB71M4，XDK77RF37-YB80M4，XDK77RF37-YB90S4，XDK77RF37-YDP63M4，XDK77RF37-YDP71M4，XDK77RF37-YDP80M4，XDK77RF37-YDP90S4，XDK77RF37-YE63M4，XDK77RF37-YE71M4，XDK77RF37-YE80M4，XDK77RF37-YE90S4，XDK77RF37-YEJ63M4，XDK77RF37-YEJ71M4，XDK77RF37-YEJ80M4，XDK77RF37-YEJ90S4，XDK77RF37-YEJB63M4，XDK77RF37-YEJB71M4，XDK77RF37-YEJB80M4，XDK77RF37-YEJB90S4，XDK77RF37-YP63M4，XDK77RF37-YP71M4，XDK77RF37-YP80M4，XDK77RF37-YP90S4，XDK77RF37-YPB63M4，XDK77RF37-YPB71M4，XDK77RF37-YPB80M4，XDK77RF37-YPB90S4，XDK77RF37-YPE63M4，XDK77RF37-YPE71M4，XDK77RF37-YPE80M4，XDK77RF37-YPE90S4，XDK77RF37-YS63M4，XDK77RF37-YS71M4，XDK77RF37-YS80M4，XDK77RF37-YS90S4，XDK77RF37-YVB63M4，XDK77RF37-YVB71M4，XDK77RF37-YVB80M4，XDK77RF37-YVB90S4，XDK77RF37-YVP63M4，XDK77RF37-YVP71M4，XDK77RF37-YVP80M4，XDK77RF37-YVP90S4，XDK77RF37-YVPEJ63M4，XDK77RF37-YVPEJ71M4，XDK77RF37-YVPEJ80M4，XDK77RF37-YVPEJ90S4，NK77R37-Y63M4，NK77R37-Y71M4，NK77R37-Y80M4，NK77R37-Y90M4，NK77RF37-Y0.12KW，NK77RF37-Y0.18KW，NK77RF37-Y0.25KW，NK77RF37-Y0.37KW，NK77RF37-Y0.55KW，NK77RF37-Y0.75KW，NK77RF37-Y1.1KW，NK77RF37-Y1.5KW，NK77RF37-Y63M4，NK77RF37-Y71M4，NK77RF37-Y80M4，NK77RF37-Y90M4，NK77RF37-YB63M4，NK77RF37-YB71M4，NK77RF37-YB80M4，NK77RF37-YB90S4，NK77RF37-YDP63M4，NK77RF37-YDP71M4，NK77RF37-YDP80M4，NK77RF37-YDP90S4，NK77RF37-YE63M4，NK77RF37-YE71M4，NK77RF37-YE80M4，NK77RF37-YE90S4，NK77RF37-YEJ63M4，NK77RF37-YEJ71M4，NK77RF37-YEJ80M4，NK77RF37-YEJ90S4，NK77RF37-YEJB63M4，NK77RF37-YEJB71M4，NK77RF37-YEJB80M4，NK77RF37-YEJB90S4，NK77RF37-YP63M4，NK77RF37-YP71M4，NK77RF37-YP80M4，NK77RF37-YP90S4，NK77RF37-YPB63M4，NK77RF37-YPB71M4，NK77RF37-YPB80M4，NK77RF37-YPB90S4，NK77RF37-YPE63M4，NK77RF37-YPE71M4，NK77RF37-YPE80M4，NK77RF37-YPE90S4，NK77RF37-YS63M4，NK77RF37-YS71M4，NK77RF37-YS80M4，NK77RF37-YS90S4，NK77RF37-YVB63M4，NK77RF37-YVB71M4，NK77RF37-YVB80M4，NK77RF37-YVB90S4，NK77RF37-YVP63M4，NK77RF37-YVP71M4，NK77RF37-YVP80M4，NK77RF37-YVP90S4，NK77RF37-YVPEJ63M4，NK77RF37-YVPEJ71M4，NK77RF37-YVPEJ80M4，NK77RF37-YVPEJ90S4，WK77R37-Y63M4，WK77R37-Y71M4，WK77R37-Y80M4，WK77R37-Y90M4，WK77RF37-Y0.12KW，WK77RF37-Y0.18KW，WK77RF37-Y0.25KW，WK77RF37-Y0.37KW，WK77RF37-Y0.55KW，WK77RF37-Y0.75KW，WK77RF37-Y1.1KW，WK77RF37-Y1.5KW，WK77RF37-Y63M4，WK77RF37-Y71M4，WK77RF37-Y80M4，WK77RF37-Y90M4，WK77RF37-YB63M4，WK77RF37-YB71M4，WK77RF37-YB80M4，WK77RF37-YB90S4，WK77RF37-YDP63M4，WK77RF37-YDP71M4，WK77RF37-YDP80M4，WK77RF37-YDP90S4，WK77RF37-YE63M4，WK77RF37-YE71M4，WK77RF37-YE80M4，WK77RF37-YE90S4，WK77RF37-YEJ63M4，WK77RF37-YEJ71M4，WK77RF37-YEJ80M4，WK77RF37-YEJ90S4，WK77RF37-YEJB63M4，WK77RF37-YEJB71M4，WK77RF37-YEJB80M4，WK77RF37-YEJB90S4，WK77RF37-YP63M4，WK77RF37-YP71M4，WK77RF37-YP80M4，WK77RF37-YP90S4，WK77RF37-YPB63M4，WK77RF37-YPB71M4，WK77RF37-YPB80M4，WK77RF37-YPB90S4，WK77RF37-YPE63M4，WK77RF37-YPE71M4，WK77RF37-YPE80M4，WK77RF37-YPE90S4，WK77RF37-YS63M4，WK77RF37-YS71M4，WK77RF37-YS80M4，WK77RF37-YS90S4，WK77RF37-YVB63M4，WK77RF37-YVB71M4，WK77RF37-YVB80M4，WK77RF37-YVB90S4，WK77RF37-YVP63M4，WK77RF37-YVP71M4，WK77RF37-YVP80M4，WK77RF37-YVP90S4，WK77RF37-YVPEJ63M4，WK77RF37-YVPEJ71M4，WK77RF37-YVPEJ80M4，WK77RF37-YVPEJ90S4，JCK77R37-Y63M4，JCK77R37-Y71M4，JCK77R37-Y80M4，JCK77R37-Y90M4，JCK77RF37-Y0.12KW，JCK77RF37-Y0.18KW，JCK77RF37-Y0.25KW，JCK77RF37-Y0.37KW，JCK77RF37-Y0.55KW，JCK77RF37-Y0.75KW，JCK77RF37-Y1.1KW，JCK77RF37-Y1.5KW，JCK77RF37-Y63M4，JCK77RF37-Y71M4，JCK77RF37-Y80M4，JCK77RF37-Y90M4，JCK77RF37-YB63M4，JCK77RF37-YB71M4，JCK77RF37-YB80M4，JCK77RF37-YB90S4，JCK77RF37-YDP63M4，JCK77RF37-YDP71M4，JCK77RF37-YDP80M4，JCK77RF37-YDP90S4，JCK77RF37-YE63M4，JCK77RF37-YE71M4，JCK77RF37-YE80M4，JCK77RF37-YE90S4，JCK77RF37-YEJ63M4，JCK77RF37-YEJ71M4，JCK77RF37-YEJ80M4，JCK77RF37-YEJ90S4，JCK77RF37-YEJB63M4，JCK77RF37-YEJB71M4，JCK77RF37-YEJB80M4，JCK77RF37-YEJB90S4，JCK77RF37-YP63M4，JCK77RF37-YP71M4，JCK77RF37-YP80M4，JCK77RF37-YP90S4，JCK77RF37-YPB63M4，JCK77RF37-YPB71M4，JCK77RF37-YPB80M4，JCK77RF37-YPB90S4，JCK77RF37-YPE63M4，JCK77RF37-YPE71M4，JCK77RF37-YPE80M4，JCK77RF37-YPE90S4，JCK77RF37-YS63M4，JCK77RF37-YS71M4，JCK77RF37-YS80M4，JCK77RF37-YS90S4，JCK77RF37-YVB63M4，JCK77RF37-YVB71M4，JCK77RF37-YVB80M4，JCK77RF37-YVB90S4，JCK77RF37-YVP63M4，JCK77RF37-YVP71M4，JCK77RF37-YVP80M4，JCK77RF37-YVP90S4，JCK77RF37-YVPEJ63M4，JCK77RF37-YVPEJ71M4，JCK77RF37-YVPEJ80M4，JCK77RF37-YVPEJ90S4，KW77RW37-Y63M4，KW77RW37-Y71M4，KW77RW37-Y80M4，KW77RW37-Y90M4，KW77RWF37-Y0.12KW，KW77RWF37-Y0.18KW，KW77RWF37-Y0.25KW，KW77RWF37-Y0.37KW，KW77RWF37-Y0.55KW，KW77RWF37-Y0.75KW，KW77RWF37-Y1.1KW，KW77RWF37-Y1.5KW，KW77RWF37-Y63M4，KW77RWF37-Y71M4，KW77RWF37-Y80M4，KW77RWF37-Y90M4，KW77RWF37-YB63M4，KW77RWF37-YB71M4，KW77RWF37-YB80M4，KW77RWF37-YB90S4，KW77RWF37-YDP63M4，KW77RWF37-YDP71M4，KW77RWF37-YDP80M4，KW77RWF37-YDP90S4，KW77RWF37-YE63M4，KW77RWF37-YE71M4，KW77RWF37-YE80M4，KW77RWF37-YE90S4，KW77RWF37-YEJ63M4，KW77RWF37-YEJ71M4，KW77RWF37-YEJ80M4，KW77RWF37-YEJ90S4，KW77RWF37-YEJB63M4，KW77RWF37-YEJB71M4，KW77RWF37-YEJB80M4，KW77RWF37-YEJB90S4，KW77RWF37-YP63M4，KW77RWF37-YP71M4，KW77RWF37-YP80M4，KW77RWF37-YP90S4，KW77RWF37-YPB63M4，KW77RWF37-YPB71M4，KW77RWF37-YPB80M4，KW77RWF37-YPB90S4，KW77RWF37-YPE63M4，KW77RWF37-YPE71M4，KW77RWF37-YPE80M4，KW77RWF37-YPE90S4，KW77RWF37-YS63M4，KW77RWF37-YS71M4，KW77RWF37-YS80M4，KW77RWF37-YS90S4，KW77RWF37-YVB63M4，KW77RWF37-YVB71M4，KW77RWF37-YVB80M4，KW77RWF37-YVB90S4，KW77RWF37-YVP63M4，KW77RWF37-YVP71M4，KW77RWF37-YVP80M4，KW77RWF37-YVP90S4，KW77RWF37-YVPEJ63M4，KW77RWF37-YVPEJ71M4，KW77RWF37-YVPEJ80M4，KW77RWF37-YVPEJ90S4，K79R39-Y63M4，K79R39-Y71M4，K79R39-Y80M4，K79R39-Y90M4，K79RF39-Y0.12KW，K79RF39-Y0.18KW，K79RF39-Y0.25KW，K79RF39-Y0.39KW，K79RF39-Y0.55KW，K79RF39-Y0.75KW，K79RF39-Y1.1KW，K79RF39-Y1.5KW，K79RF39-Y63M4，K79RF39-Y71M4，K79RF39-Y80M4，K79RF39-Y90M4，K79RF39-YB63M4，K79RF39-YB71M4，K79RF39-YB80M4，K79RF39-YB90S4，K79RF39-YDP63M4，K79RF39-YDP71M4，K79RF39-YDP80M4，K79RF39-YDP90S4，K79RF39-YE63M4，K79RF39-YE71M4，K79RF39-YE80M4，K79RF39-YE90S4，K79RF39-YEJ63M4，K79RF39-YEJ71M4，K79RF39-YEJ80M4，K79RF39-YEJ90S4，K79RF39-YEJB63M4，K79RF39-YEJB71M4，K79RF39-YEJB80M4，K79RF39-YEJB90S4，K79RF39-YP63M4，K79RF39-YP71M4，K79RF39-YP80M4，K79RF39-YP90S4，K79RF39-YPB63M4，K79RF39-YPB71M4，K79RF39-YPB80M4，K79RF39-YPB90S4，K79RF39-YPE63M4，K79RF39-YPE71M4，K79RF39-YPE80M4，K79RF39-YPE90S4，K79RF39-YS63M4，K79RF39-YS71M4，K79RF39-YS80M4，K79RF39-YS90S4，K79RF39-YVB63M4，K79RF39-YVB71M4，K79RF39-YVB80M4，K79RF39-YVB90S4，K79RF39-YVP63M4，K79RF39-YVP71M4，K79RF39-YVP80M4，K79RF39-YVP90S4，K79RF39-YVPEJ63M4，K79RF39-YVPEJ71M4，K79RF39-YVPEJ80M4，K79RF39-YVPEJ90S4。

K79R39減速電機生產廠家：看廠請聯系微信13827261050，獲取位置，需提前一天預約http://www.0668room.com/product/list-kxiliejiansuji-cn.html

推薦型號：K79減速機
